How Electric Ball Valves Work: Inside the Motorized Actuator That Controls Flow

Corroded manual ball valves stick, leak, and drive maintenance costs sky-high. When downtime strikes, your facility team scrambles, production stalls, and energy bills climb. صمامات الكرة الكهربائية motorize the process, delivering hands-free reliability that keeps lines running and budgets in check.

أن صمام الكرة الكهربائي is a quarter-turn صمام الكرة coupled to an محرك كهربائي. When low-voltage or mains electric current hits the motor, the actuator’s gearbox rotates the ball بالضبط 90 degrees ل فتح الصمام أو إغلاقه. Built-in مفاتيح الحد stop motion precisely at each end, so the valve automatically holds position even if power is lost.

1. What Is a Ball Valve and Why Is It Still King?

أ ball valve is a type of valve that uses a كرة ذات ثقب through its center to start or stop flow. Because the passage is full-bore, ball valves offer minimal pressure drop. Facilities engineers love that a صمام ربع دورة needs only a 90 degrees twist to open the valve fully.

"Ball valves are commonly specified wherever zero leakage, compact size, and fast actuation matter.” — Lead Mechanical Engineer, Global Food Co.

Modern projects rarely keep operators at every valve. Ball valves can be automated easily, turning them into الصمامات الكروية المشغلة that respond to a remote command instead of a wrench.

صمام الكرة الكهربائي من الفولاذ المقاوم للصدأ

2. How Do Electric Actuators Convert Electrical Power into Torque?

Inside an محرك كهربائي, a small محرك كهربائي drives a worm or planetary gear set that multiplies torque while lowering speed. That gearbox is connected to the valve stem through a keyed drive or ISO 5211 flange. When voltage is applied, the electric actuators convert electrical energy into rotational motion, turning the shaft connected to the valve exactly 90 °.

Key parts of a valve actuator

• Power source: 24 V DC, 110 V AC, or solar-battery packs.
• Control ball logic board: Interprets 4-20 mA, Modbus, BACnet, or simple on/off signals.
• Limit switch pair: Signals when the valve is open or closed.
• التجاوز اليدوي and hex nut: Lets technicians فتح وإغلاق the assembly during outages.

Because the valve requires only intermittent current, duty cycles approach 100 %, unlike المشغلات الهوائية that bleed air continuously.

3. Electric Ball Valve vs Pneumatic Ball Valve—What’s the Difference?

Both electric and pneumatic ball valves use the same جسم الصمام. The choice depends on utility availability, speed, and safety class. Remember: valves vs actuators is not either-or—selecting the correct combination protects process uptime.

We make both styles. Compare our صمام الكرة الكهربائي و pneumatic actuator ball lines to see which suits your plant.

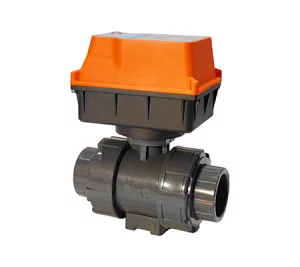

صمام الكرة الكهربائي

4. Which Valve Types Can Be Motorized Besides the Classic Floating Ball?

في حين أن كرة عائمة design dominates, our factory also motorize:

• Segmented-ball control valves for fine throttling.
• صمامات الفراشة from 2 ″ to 48 ″ with electric valve actuators for lightweight economics.
• High-pressure trunnion-mounted ball valve sizes up to DN300.

Because an صمام كهربائي simply needs a standard drive pad, valves and electric actuators pair up across many different types of valves.

5.How Do Limit Switches, Positioners & Feedback Increase Control Accuracy?

أ limit switch is the watchdog of an مشغل. As soon as the rotating ball reaches 0 ° or 90 degrees, the cam strikes the micro‑contact and cuts power so the محرك كهربائي stops instantly. Without that safeguard, the جسم الصمام could over‑travel, scarring seats and letting leaks sneak past.

Adding a digital الموضع turns simple valves to open and close into proportional controllers. A 4‑20 mA signal tells the logic board exactly where the position of the valve must sit; the gearbox nudges the stem until a hall sensor confirms set‑point. The valve automatically holds position—even through pressure surges—so your PID loop stays rock steady.

Modern smart packages bolt a tiny server inside the enclosure. The board logs cycle count, temperature, and torque. When the threshold hits 80 % of design, an e‑mail flags maintenance that the valve will work a bit harder soon. Predictive analytics like this cut unplanned shutdowns by 32 % in our last chemical‑plant rollout.

Take‑away: precise feedback means tighter control, longer seal life, and fewer wrench turns for technicians.

6. What Factors Determine Flow Rate & Valve Sizing?

معدل التدفق through a صمام الكرة depends on four pillars—Cv, ΔP, media density, and temperature. Select a ball valve is a type with the right تصميم الصمام (full‑port for low ΔP, V‑port for throttling). Check ball valve sizes on the Cv chart: a DN50 full‑port passes as much water as a DN80 globe.

Map the duty point on the pump curve; oversizing robs resolution while undersizing strangles load. In glycol loops, viscosity climbs as temperature drops, so the type of valve must remain full‑bore to offset higher friction. Use our online Cv calculator linked on every ball valve manufacturer صفحة to avoid spreadsheet headaches.

Finally, match the valve applications to seat and body materials. Steam calls for PTFE + carbon, while seawater needs duplex stainless. The right trim keeps ball valves operate smoothly for decades.

7.How Do Smart Valves Integrate with BAS, SCADA & IIoT?

أ valve combines an electric drive with a micro‑controller, transforming it into a gateway node. Our high‑quality electric ball valves ship with BACnet MS/TP, Modbus‑RTU, and MQTT in the same board—no daughter cards. Plug a Cat‑5 cable in and the مشغل الصمام الكهربائي auto‑negotiates baud rate with your BAS.

Need wireless? Choose the Wi‑Fi board on our صمام كهربائي line and scan the QR code; provisioning takes 90 seconds. The dashboard graphs daily cycles, alerts on excess torque, and exports REST hooks straight into SCADA.

Field note: At a UAE district‑cooling plant, 512 valves and electric ball valves stream live data to the cloud. The operator shaved 11 % pump energy by tweaking set‑points remotely—no site visit.

Cyber‑security matters too. TLS 1.3 encryption and rotating tokens keep rogue scripts from forcing a valve to open unexpectedly. That’s why municipal engineers specify our ISO 27001 stack for potable networks.

8.Step‑by‑Step Selection of Electric Actuated Ball Valves for HVAC Loops

Following this selection of electric actuation steps ensures the valve requires no mid‑project redesign—saving both contractor labour and change‑order grief.

صمام الكرة الكهربائي

9.Maintenance Tips: Keeping the Valve Body & Actuator in Sync

Monthly, drive the مشغل through a full cycle to wipe debris off the seats; inactivity glazes PTFE. Watch the status LEDs—three green blinks confirm the limit switch pair hits both targets. If not, recalibrate cams before the valve closes on a mis‑aligned seat.

Quarterly, crack the cover and inspect the spur gears. A dab of food‑grade grease keeps the teeth silent so occupants never hear the electric current engaging above the ceiling. Tighten terminal screws; vibration loosens them and can starve the board of the intensity of the power needed at stall.

Every 10 000 moves, log cycle count. Electric actuators convert electrical energy efficiently, but brushes wear. Swap the motor cartridge in five minutes—no need to unbolt the connected to the valve stem housing. Good practice like this means our التشغيل الكهربائي packages routinely outlive the piping they control.

10.Case Study: Retrofit Cuts Pump Energy 22 % in a Chilled‑Water Plant

الخلفية

A 28‑story data centre in Frankfurt struggled with low ΔT and soaring kW/ton. Manual throttling failed because operators forgot to reset after maintenance.

Solution Implemented

• Replaced 64 gate valves with DN65 motorized ball valves offer zero‑leak isolation.
• Fitted each with a 4‑20 mA مشغل الصمام and dual limit switch feedback.
• Upgraded BAS logic to modulate based on supply‑return spread.

النتائج

“The valves excel at tight shut‑off; leakage dropped to practically zero. Our chilled water loop finally meets design ΔT.” — Facility Manager

Payback landed at 14 months. Better yet, the predictive dashboard spots sticky stems long before failure, proving that ball valves and electric ball actuation isn’t just smart—it’s profitable.

11. FAQs

How long does an electric ball valve last?
Properly lubricated, the actuator gearbox and seals hit 100 000 cycles—about 10 years in typical HVAC duty.

What is the main difference between electric and pneumatic actuated ball valves?
Electric uses a gear-motor; pneumatic uses compressed air. Electric is quieter and needs no air prep, while pneumatic offers faster failsafe.

Can I retrofit an existing manual ball valve?
Yes. Choose an actuator and a ball valve with an ISO 5211 mount, then bolt the مشغل الصمام الكهربائي in minutes.

How do I size the power supply?
Add 20 % headroom above the stall current. Our مشغل دوار متناسب datasheet lists draw at every voltage.

Are solenoid valves and electric ball valves interchangeable?
No. A صمام الملف اللولبي snaps open instantly, great for small pipes. صمامات كروية تعمل بالكهرباء handle larger diameters with lower pressure loss.

12. Key Takeaways

• صمام كروي + محرك كهربائي = precise, low-maintenance flow control.
• أ limit switch ensures accurate stop points; feedback boosts automation.
• قارن electric and pneumatic ball valves based on utilities, speed, and safety.
• Smart networking via Wi-Fi, LoRaWAN, or BACnet slashes commissioning time.
• Follow the selection of electric actuators checklist—torque, media, power—to guarantee success.

Need sizing help today? Reach our engineering desk for a free valve schedule review and see how motorized ball valves offer the reliability your project demands.
