Electric Ball Valve Actuator: The Ultimate Guide for Smart Flow Control

Are manual valves slowing your facility down, creating unnecessary energy losses, or leading to unexpected shutdowns? Inconsistent flow control can quickly spiral into inefficiency, system failures, and high costs. The good news? An electric ball valve actuator offers precision, automation, and peace of mind for critical operations.

What is an electric ball valve actuator?
An electric ball valve actuator is a motorized unit that automatically opens and closes a ball valve, enabling accurate, remote, and programmable flow control in industrial, commercial, and building automation systems. This technology integrates seamlessly into automation networks for reliable, energy-efficient operation.

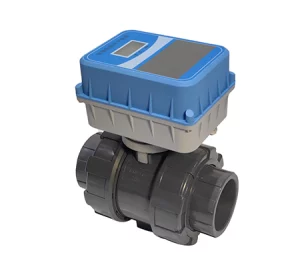

Electric Ball Valve with Actuator

What Is an Electric Ball Valve Actuator and How Does It Work?

An electric ball valve actuator is a device designed to automatically actuate (open or close) a ball valve using electric power. This replaces manual handwheel operation and removes the need for compressed air, which is required for pneumatic actuators. By utilizing an electric actuator, you gain:

• Automated, hands-free valve operation
• Remote and programmable control (including via smart building or industrial platforms)
• Consistent, repeatable valve actuation
• Quarter-turnoperation for rapid open and close cycles

The actuator is mounted to the valve using an ISO 5211 mounting pad, connecting to the valve stem and providing the necessary torque to rotate the ball. As the actuator receives signals (from a control system, PLC, or manual switch), it turns the valve 90 degrees, moving it from fully open to fully closed — or any position in between, for precise flow control.

Typical construction includes:

“Electric ball valve actuators are transforming industrial flow control by delivering efficiency, safety, and automation to processes that previously relied on manual or pneumatic systems.”

Explore a wide selection of electric ball valves and actuators built for seamless integration.

Why Choose a Motorized Ball Valve Over Manual or Pneumatic Options?

Motorized ball valves bring a new level of efficiency and accuracy to flow control applications. Here’s why many facility managers, engineers, and integrators prefer them:

• No need for compressed air:Unlike pneumatic actuators, electric actuators only require an electrical supply (typically 24V, 110V, or 220V), making them ideal for facilities without an air compressor.
• Remote and automated operation:Easily connect electric ball valves to building automation systems for remote operation, scheduled cycles, and real-time feedback.
• Precise control and reliability:The actuator’s internal limit switches and cams ensure the valve is completely open or completely closed at every cycle, reducing leak risk and maximizing efficiency.
• Energy savings:Motorized ball valves use energy only during actuation, not for holding position, leading to lower operating costs compared to some pneumatic solutions.

Compared to manual or pneumatic valve actuators:

Looking for an actuator that matches your technical requirements? Configurator help is available to select the right electric actuator or motorized ball valve for your system.

Core Applications for Electric Ball Valve Actuators

Electric ball valve actuators are engineered for a wide range of industrial, commercial, and municipal applications where reliable, automated flow control is essential.

Building Automation & HVAC

• Used in HVAC systemsfor chilled/hot water loops, air handling units, and zone control
• Valve actuatorsenable precise control over the flow of fluids, improving comfort and energy efficiency
• Ideal for smart buildingswhere valves must be actuated remotely or on a schedule

Industrial Plants & Process Automation

• Electric actuated ball valvescontrol water, oil, chemicals, and gases in processing lines
• Reduce manual labor and human error by automating open or closecommands
• Withstand demanding environments and different materials(stainless steel, PVC, brass)

Public Infrastructure & Utility Projects

• Water treatmentplants, oil and gas facilities, and municipal distribution systems
• Electric valve actuators integrate with SCADA and BMS platforms for secure, reliable, and documented valve operation

motorized ball valve used in industrial automation

See real-world examples and success stories in intelligent valve solutions.

Key Features and Types of Electric Valve Actuators

Electric valve actuators come in a variety of actuator types, each with unique features for different applications. When choosing an actuator for your ball valve, consider the following:

Main Features:

• Quarter-turn operation:Perfect for ball valves and butterfly valves
• Voltage options:Available in 24V, 110V, 220V (single or three-phase)
• Weatherproof enclosures:NEMA-rated for harsh, outdoor, or wet conditions
• Manual override:Ensures you can open and close the valve without power
• Limit switch feedback:Internal cams striking limit switches send signals confirming valve position
• ISO 5211 mounting:Standardizes actuator-to-valve connections for easy replacement

Popular Electric Valve Actuator Types:

• On/Off Actuators:Open or close the valve fully on command
• Modulating Actuators:Allow partial opening for flow control and throttling
• Fail-safe Actuators:Return the valve to a normally closed or normally open state during loss of power
• Smart Electric Actuators:Offer communication (Modbus, BACnet, etc.) for integration with building and process automation

Explore a wide selection of electric valve actuators and ball valves for your specific needs.

How to Select the Right Electric Actuator for Your Ball Valve

Choosing the correct electric actuator for your ball valve is vital for optimal system performance and safety. Selection should consider valve size, port configuration, pressure rating, actuation type, and control signal compatibility.

Key Considerations:

• Valve Size & Type:
  Ensure the actuator is rated for your ball valve’s size (such as 1-inch, 2-inch, up to 4 inch or larger) and port type (full port, 2-way ball valves, or 3-way electric ball configurations).
• Torque Requirements:
  Calculate the torque needed to rotate the valve fully, considering the medium (water, oil, gas) and pressure. Actuators are available with varying torque ratings for different applications.
• Voltage & Power Supply:
  Electric actuators are available in various voltages (24VDC, 110VAC, 220VAC). Match the actuator to your system’s available power supply for compatibility and safety.
• Mounting & Standards:
  The ISO 5211 mounting padis a common industry standard, simplifying valve mounting and replacement. Always verify compatibility.
• Control Signal:
  Choose from on/off (two-position), modulating (4-20mA or 0-10V), or networked smart actuators for advanced automation.

Actuator Configurator Help:
Use online configurator tools to select, compare, and size actuators for your specific requirements. Manufacturers may offer application engineering support to ensure you choose the right device.

Pro Tip:
For remote or hazardous areas, prioritize weatherproof (NEMA) and explosion-proof models for safety and reliability.

Electric Ball Valve Installation and Integration Tips

Proper installation ensures a long, trouble-free service life for your electric ball valve system. Here’s a step-by-step approach:

1. Valve Mounting:
   Securely attach the actuator to the valve body using the correct mounting pad (often ISO 5211). Ensure the actuator is mounted to the actuator with proper alignment to the valve stem.
2. Electrical Connections:
   Follow manufacturer wiring diagrams. Double-check voltage, ground, and control signal wires to avoid reverse polarity or shorts.
3. Limit Switch Calibration:
   Set internal cams so limit switches accurately signal when the valve is fully open or fully closed. This prevents motor overrun and potential gear damage.
4. Manual Override:
   Familiarize yourself with the manual override procedure. This ensures you can open or close the valve during power loss or emergency.
5. Commissioning:
   Test the actuator in both directions. Confirm correct open or closeoperation, and ensure feedback signals are received by your control system.
6. Integration:
   Integrate the electric ball valve with automation platforms (BMS, PLC, SCADA) for remote monitoring, alarms, and scheduling.

Visual: Electric Ball Valve Actuator Installation Steps

For advanced automation solutions, visit our smart valve water page and explore intelligent integration options.

Comparing Electric, Pneumatic, and Manual Valve Actuators

Selecting between electric, pneumatic, and manual valve actuators depends on your operational priorities:

Electric ball valves excel in smart buildings, remote facilities, and anywhere that requires integration, data, and reliability without the need for compressed air.
Pneumatic actuators suit high-speed, hazardous, or explosion-proof areas.
Manual is best for backup or basic on-off needs.

See more about electric valve actuator options for various use cases.

Smart Automation: Electric Ball Valve Actuators in Modern HVAC & Industry

Smart facilities demand intelligent flow control. Electrically actuated ball valves support advanced functions:

• Remote operationvia network (Modbus, BACnet, IoT)
• Scheduled operation for efficiency and water/energy conservation
• Integration with fire and safety systems for emergency shutdown
• Real-time monitoring of valve position, cycle count, and loss of power events
• Adaptive flow control for demand-based cooling, heating, or process supply

Case Study:
A public infrastructure project replaced manual and pneumatic valves with smart electric ball valves. The result:

• 15% reduction in energy costs
• Remote diagnostics reduced downtime by 60%
• Quick, documented cycle logs improved regulatory compliance

%Smart Electric Ball Valve Actuator in Building Automation

Learn more about integrating electric valves into your system by visiting our intelligent valve solutions.

FAQs: Electric Ball Valve Actuator Selection & Use

What is a full port electric ball valve and why does it matter?
A full port ball valve has an internal bore diameter equal to the pipe size, minimizing flow restriction. This is crucial in applications needing high flow rates or minimal pressure drop.

Can I use an electric actuator on any type of valve?
While electric actuators are ideal for ball valves and butterfly valves, they can also be adapted to gate valves and globe valves with appropriate mounting kits.

What happens to the electric ball valve actuator if there is a loss of power?
Some actuators feature a fail-safe design, returning the valve to a normally open or normally closed state. Manual overrides ensure the valve can be operated even without power.

How long does it take for an electric actuator to open and close a ball valve?
Typical cycle time ranges from 5 to 15 seconds, depending on actuator size, voltage, and torque requirements.

How do I know if my actuator is weatherproof?
Check for a NEMA or IP rating. Weatherproof actuators are essential for outdoor or wet locations.

Where can I get more help with selecting and configuring electric actuated ball valves?
Our expert configurator help and technical support team can guide you through every step.

Summary: Key Takeaways on Electric Ball Valve Actuators

• Electric ball valve actuators provide automated, precise, and reliable control for a wide range of systems.
• Key features include quarter-turn operation, ISO 5211 mounting, weatherproof options, and remote programmability.
• Selection should be based on valve size, torque, voltage, port type, and control needs.
• Smart electric actuators support integration with advanced automation and monitoring systems.
• For reliable supply, technical expertise, and global delivery, partner with a proven electric valve manufacturer.

Most important things to remember:

• Automate your flow control for safety and efficiency
• Choose the correct actuator type for your application
• Consider integration, voltage, and port size
• Use weatherproof actuators for outdoor or harsh environments
• Rely on experienced manufacturers for technical support and global delivery
