Auto Balancing Valves: Complete Guide to Automatic Hydronic Balancing in HVAC Systems

Is your building fighting a losing battle with comfort? Some rooms are too hot while others are too cold. Tenants complain. Your energy bills keep climbing, and the pumps in your mechanical room seem to be running harder than ever. This isn’t just a minor annoyance. It’s a sign of an unbalanced hydronic system, a problem that silently wastes thousands of dollars and causes equipment to fail prematurely. But what if there was a way to solve this permanently, making your building comfortable and efficient with one smart upgrade? That solution is the auto balancing valve.

What Are Auto Balancing Valves?

Definition of Automatic / Auto Balancing Valves

At its core, an automatic balancing valve (ABV) is a smart, self-adjusting device. Its job is simple but vital: to maintain a constant flow of water to a specific part of a heating or cooling system.

Think of it like cruise control for your car. You set a speed, and the car automatically gives more or less gas to maintain that speed, no matter if you’re going uphill or downhill. An auto balancing valve does the same for water flow. Once it’s set for a specific flow rate, it automatically adjusts to changes in system pressure, ensuring that coils and terminals always get the exact amount of water they need.

This makes them a key component in automatic hydronic balancing, a modern approach to making HVAC systems work perfectly.

What Are Auto Balancing Valves?

Auto Balancing vs Standard Balancing Valves

For decades, engineers used static vs dynamic balancing valves.

• Static (Manual) Balancing Valves: These are like a simple faucet. A technician must manually turn the valve to a specific position to restrict the flow. The problem? This setting is fixed. When pressure changes elsewhere in the building—like when other units turn on or off—that fixed setting is no longer correct. This leads to overflow and underflow prevention in coils becoming a constant challenge.
• Dynamic (Automatic) Valves: These valves are different. They react to the system. They are the “set it and forget it” solution. This key difference—automatic vs manual balancing valves—is why modern systems rely on automatic technology for efficiency and comfort.

Common Terminology & Synonyms

You will hear many names for these devices. They all relate to the same core idea of automatic flow control. Common terms include:

• Dynamic balancing valves
• Automatic flow control valves
• Constant flow control valve
• Automatic flow limiting valve
• Automatic flow regulating valve

These terms are often used for the same type of product, designed to perfect the science of dynamic hydronic balancing.

How Auto Balancing Valves Work (Dynamic Flow Control)

The magic of an auto balancing valve for hvac happens inside the valve body itself. It seems complex, but the working principle is beautifully simple.

Internal Cartridge / Diaphragm Mechanism

Inside every auto balancing valve with cartridge is a sophisticated mechanism. This is usually a spring-loaded cartridge or a flexible diaphragm. This internal part is the brain of the valve.

As the water pressure before the valve increases, it pushes against the cartridge. The cartridge moves just enough to close the opening inside the valve slightly, keeping the flow rate constant. If the pressure drops, the spring pushes the cartridge back, opening the valve a bit more.

This constant, tiny adjustment happens hundreds of times a day without any external power or control. It is a purely mechanical process that guarantees the correct design flow rate for coils and branches.

Constant Flow vs Pressure-Independent Control

There are two main families of automatic balancing technology:

1. Auto Balancing Valves (ABVs): These are focused on one job: keeping the flow rate constant. They are perfect for constant flow hydronic systems or for circuits where you want a fixed amount of water, like in auto balancing valves for radiant heating.
2. Pressure Independent Control Valves (PICVs): A PICV balancing valve is a more advanced device. It combines an automatic balancing valve and a control valve into one body. This means it not only keeps the flow constant but also allows a Building Management System (BMS) to adjust that flow as needed. These are the gold standard for variable flow hydronic systems.

Operating Range, ΔP and Kv/Cv Basics

For an auto balancing valve to work, it needs a certain amount of pressure to push against. This is called the differential pressure (ΔP) across valve.

• Operating Range: Every valve has a minimum and maximum ΔP it can handle. For example, a valve might work perfectly as long as the pressure difference is between 5 and 50 PSI.
• Sizing is Critical: If the ΔP is too low, the valve won’t be able to regulate. If it’s too high, it can cause noise or damage. That is why proper auto balancing valve sizing and selection based on the correct Kvs / Cv flow coefficient is essential for a quiet and efficient system.

Types of Balancing Valves in Hydronic HVAC Systems

To truly understand the value of automatic valves, it helps to know the other types of hydronic system balancing valves available.

Manual / Static Balancing Valves

These are the original type of balancing valve. They have measurement ports that allow a technician to measure the pressure and calculate the flow. While they are still used in some very simple, constant flow systems, they are labor-intensive to set up and are not suitable for modern, variable-flow buildings.

Dynamic Automatic Balancing Valves (ABVs)

These are the workhorses of modern HVAC. They are stand-alone automatic circuit balancing valves designed to deliver a fixed, constant flow. You will find them on auto balancing valves for branch circuits and individual units, ensuring every part of the system gets its fair share of water.

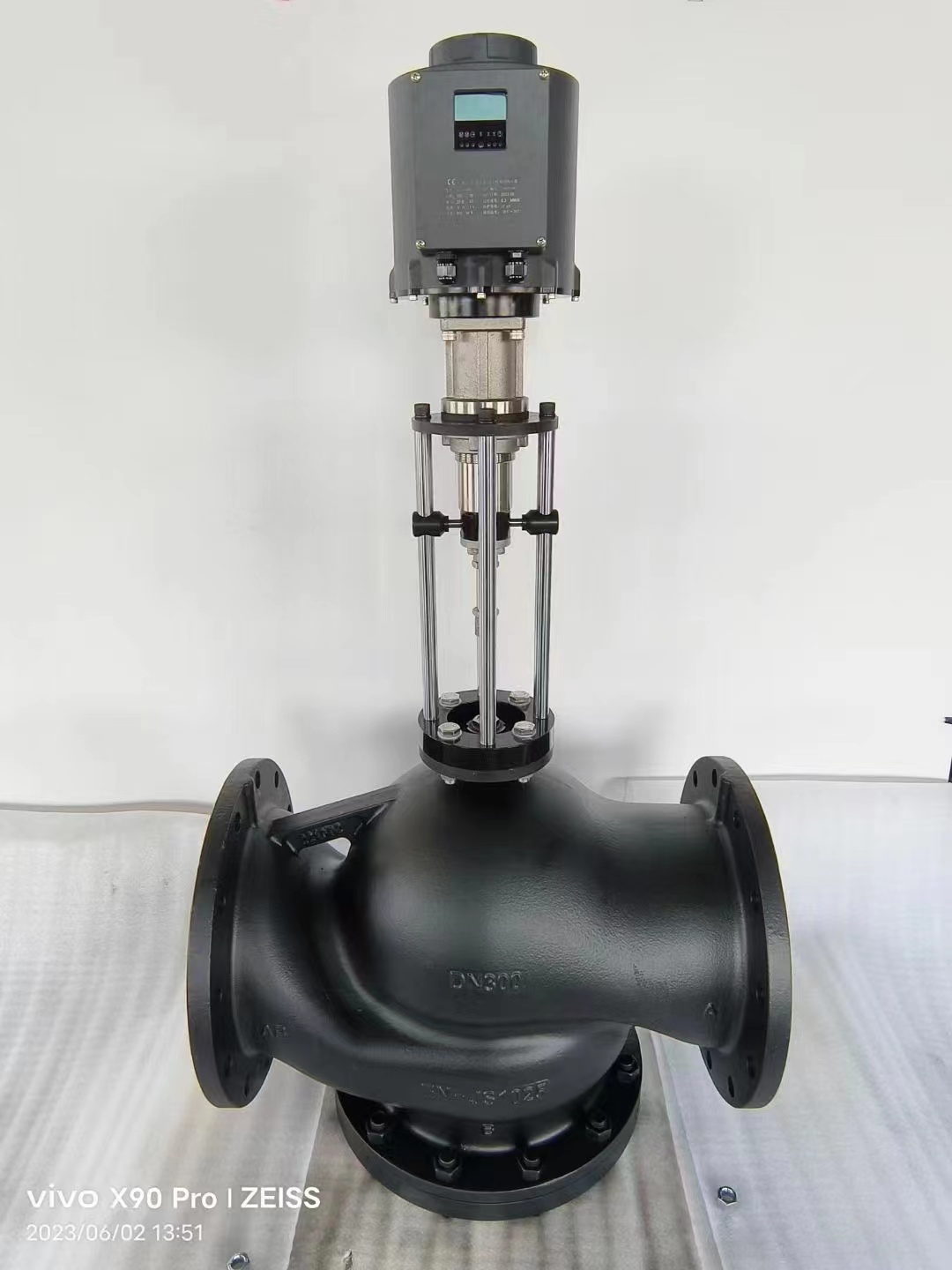

Pressure-Independent Control Valves (PICVs & ePIVs)

PICVs are the smartest valves on the market. They offer two-in-one functionality: automatic balancing and modulating control. This is crucial for variable primary chilled water system designs.

• Mechanical PICVs: Use an internal mechanical regulator.
• Electronic PICVs (ePIVs): These are even more advanced smart automatic balancing valves. They use sensors and an electric actuator to measure flow and adjust it electronically, offering incredible precision.

Differential Pressure Control Valves for Risers & Branches

Sometimes, instead of putting a valve on every single unit, it’s smarter to control a whole section of the building. A differential pressure control valves for hvac does this. It is installed on a riser or large branch and keeps the pressure stable for all the terminal units downstream. This is a common strategy in district heating network applications and large buildings.

Key Benefits of Auto Balancing Valves

Why are so many building owners and engineers switching to automatic balancing valves for VAV systems and other modern designs? The benefits are clear and significant.

Stable Comfort – No Overflow or Starved Circuits

The biggest problem in unbalanced systems is uneven flow. Some units get too much water (overflow), making them noisy and inefficient. Others get too little (underflow or starved), leaving tenants cold. Auto balancing valves fix this. They guarantee every single coil, from the one closest to the pump to the one farthest away, gets the exact amount of water it was designed for. The result is even, stable temperatures everywhere.

Energy Savings & Pump Power Reduction

This is where the financial return becomes obvious. Studies and real-world projects consistently show major savings.

• Heating Energy: Upgrading to automatic hydronic balancing can cut heating energy use by 10-20%. A retrofit program in Canada across 68 buildings reported energy savings greater than 28% [3].
• Pump Energy: Over-pumping is a huge energy waste. Dynamic valves allow pumps to slow down, and this can cut pump electricity use by 25% or more. In some cases, combining dynamic PICVs with variable-speed pumps led to an additional 26% pump-energy reduction [4].

Table 1: Measured Energy Savings from Automatic Balancing

Fewer Valves, Less Labor, Easier Commissioning

Manually balancing a large building is a nightmare. It can take a team of technicians weeks, and the moment something changes, it has to be done all over again.

Auto balancing valves slash this time and cost. The process of hvac system commissioning with automatic balancing is dramatically faster. One case study noted that commissioning time was reduced from weeks to just a few hours [4]. Another report found that a new series of PICVs cut commissioning labor by about 35% [3]. This means buildings get up and running faster, with lower upfront costs.

Lower Noise, Less Erosion, Longer Equipment Life

Valves that are manually throttled down too far can cause very high water velocity. This creates noise that tenants can hear and leads to erosion that destroys the valve and piping over time. Auto balancing valves noise reduction is a major benefit, as they are designed to manage pressure internally without causing these issues. This leads to a quieter system and longer life for all components.

Typical Applications for Auto Balancing Valves

Automatic water flow balance valves are versatile and can be used in almost any hydronic system.

Two-Pipe Heating & Cooling Systems in Commercial Buildings

This is the most common application. In office buildings, hotels, hospitals, and schools, loads are constantly changing. Pressure independent balancing valves for commercial buildings like the Belimo pressure independent control valves are ideal for managing this dynamic environment. They are used in office HVAC retrofit projects and new builds alike.

Chilled Water & Hot Water Loops (AHUs, FCUs, Coils)

Every terminal unit needs the correct flow to work properly. This includes:

• Auto flow control valve for fan coil units (FCUs)
• Auto balancing valves for AHU coils
• Automatic coil balancing valves for VAV reheat systems
• Auto balancing valve for chilled beam systems

Radiant Floor / Underfloor Heating & Low-Temperature Systems

Radiant systems require steady, even flow to provide comfortable heat. Auto balancing valves for radiant floor heating ensure that every loop in the floor gets the same amount of warm water, preventing hot and cold spots. They are also perfect for low temperature automatic balancing valves for glycol systems.

District Heating/Cooling, Data Center & Industrial Process Cooling

In large-scale systems, pressure fluctuations are massive.

• Automatic balancing valve for district heating and cooling networks are essential for stability.
• Auto balancing valves for data center cooling provide the reliability needed to protect critical IT equipment.
• Automatic balancing valves for process cooling deliver the precise temperature control required in industrial settings.

Auto vs Manual Balancing Valves – Which Should You Use?

While manual valves seem cheaper upfront, the choice becomes clear when you look at the total picture.

Cost & ROI Comparison

• Initial Cost: A manual valve is cheaper than an automatic one.
• Total Installed Cost: When you factor in the weeks of labor for manual balancing, the total cost gets much closer.
• Lifetime Cost: This is where automatic valves win easily. The energy saving auto balancing valves provide pays for the initial investment quickly, often in just 2 to 4 years. They also reduce maintenance calls and improve equipment life, adding to the savings.

System Size, Complexity & Control Strategy

• Small, Simple Systems: For a very small building with a constant load, manual valves might be acceptable.
• Large, Variable Systems: For any modern commercial building with variable loads—which is almost all of them—automatic balancing valve for variable flow systems is the only logical choice. They are essential for a high delta-T system design.

Interaction with Variable Speed Pumps & BMS

Modern HVAC systems use variable frequency drives (VFDs) on pumps to save energy. These pumps are constantly changing speed. A manual balancing valve cannot cope with this. Dynamic balancing valves for variable primary systems work hand-in-hand with VFDs. The valves ensure proper distribution, while the pump provides only the pressure that is needed. This synergy is what unlocks maximum energy savings.

How to Select the Right Auto Balancing Valve

Choosing the correct valve is critical. A reliable manufacturer with deep technical expertise can provide not only high-quality products but also the engineering support to ensure system success. Look for a partner who offers a range of intelligent valve solutions and can assist with complete system integration.

Step 1 – Determine Design Flow for Each Terminal / Branch

First, you need to know how much water each unit needs. This is the design flow rate, usually measured in Gallons Per Minute (GPM) or Liters per Second (L/s). This is calculated based on the heating or cooling load.

Step 2 – Check Available Differential Pressure & Valve Operating Range

Next, look at the system pump and piping to determine the available ΔP at each valve. You must select a valve whose operating range matches the system’s pressures.

Step 3 – Size by Kv/Cv and Cartridge Selection

Using the design flow and the ΔP, you can select the right size valve or the correct flow control cartridges for auto balancing valves. Do not oversize the valve. A valve that is too large will not control accurately.

Step 4 – Choose Materials, Connections & Ratings

Valves come in many materials, like brass or stainless steel. Connections can be threaded or flanged. Make sure the valve’s pressure (PN) and temperature ratings are right for your system. For specialized applications, you might need stainless steel automatic balancing valves or marine grade automatic balancing valves.

Step 5 – Align with Control Strategy (Stand-Alone ABV vs PICV)

Finally, decide if you need a simple fixed flow control valves (ABV) or a combination balancing and control valve (PICV). If you have a separate control valve, an ABV is a great choice. If you want to simplify piping and improve control, a PICV is the superior option.

Installation & Commissioning Best Practices

Proper installation is key to performance. Partnering with a factory that provides clear guidance and has an experienced technical team can make this process smooth. An annual production capacity of 8,000 tons of valves often indicates a manufacturer with robust processes and support.

Correct Valve Location in the Hydronic Circuit

Typically, balancing valves are installed on the return side of a coil. Refer to manufacturer diagrams, like those from Danfoss ASV automatic balancing valves or IMI Flow Design AutoFlow valves, for best practices.

Piping Details: Strainers, Isolation Valves & Orientation

• Strainers: Always install an automatic balancing valve with strainer or a separate strainer upstream to protect the internal cartridge from dirt.
• Isolation Valves: Install ball valves before and after the balancing valve to allow for service.
• Orientation: Install the valve in the correct flow direction, as indicated by the arrow on the valve body.

Setting / Adjusting Design Flow on Adjustable ABVs

Many valves are available with pre-set flow rates. If you have an auto balancing valve with adjustable flow, you will use a dial or a chart to set it to the desired GPM before start-up.

Verifying Hydronic Balance

Even with automatic valves, it is good practice to verify the performance. This can be done by checking the temperature drop (ΔT) across coils or by taking pressure readings at the integrated test ports on an auto balancing valve with pressure gauge.

Troubleshooting Common Problems with Auto Balancing Valves

Even the best valves can have problems if the system is not clean or set up properly. Rigorous quality control, with multiple tests before delivery, helps minimize defects, but system-wide issues can still occur.

Insufficient Flow or No Flow at Terminal Units

• Cause: Clogged strainer, closed isolation valve, or ΔP is too low (pump is too small or set too low).
• Solution: Check and clean the strainer. Verify all other valves are open. Check the pump pressure.

Noise, Vibration or Hunting in the System

• Cause: ΔP is too high, or the valve is oversized. Air in the system is also a common cause.
• Solution: Reduce pump speed if possible. Check valve sizing. Bleed air from the system.

Dirt, Debris & Cartridge Wear

• Cause: The system was not flushed properly before filling. This is the #1 enemy of all hydronic components.
• Solution: Flush the system thoroughly. A high-quality balancing valve with a well-designed cartridge is more resistant to dirt, but no valve is immune. Clean or replace the cartridge if needed.

FAQs About Auto Balancing Valves

• Do Auto Balancing Valves Replace Manual Balancing Valves Completely? In modern, variable-flow systems, yes. They offer superior performance, energy savings, and lower labor costs that make them the clear choice for almost all commercial projects.
• What’s the Difference Between an Auto Balancing Valve and a PICV? An auto balancing valve (ABV) only controls flow. A Pressure-Independent Control Valve (PICV) is an ABV and a control valve in one device. It balances the flow and also modulates it to match the load.
• Can I Use Automatic Balancing Valves in Small Residential Systems? Yes, especially for things like automatic radiator balancing valves or zoning in radiant floor heating. They can solve persistent comfort problems in larger homes.
• How Long Do Auto Balancing Valves Last and What Maintenance Is Needed? A well-made valve from a reputable manufacturer can last for decades. The only maintenance typically required is periodic inspection and cleaning of the upstream strainer.

How to Specify Auto Balancing Valves for Your Next HVAC Project

Choosing a partner with a deep product line, from auto balancing valves to intelligent energy-saving control systems, ensures you can find the right solution for any application. A factory located in a transportation hub can also respond quickly to project needs and provide customized solutions.

By moving from older manual methods to modern automatic balancing, you are investing in a system that is more efficient, more reliable, and far more comfortable for the people inside the building. It is a proven technology that solves the fundamental problems of hydronic distribution, delivering savings and performance for years to come.
