Common Problems with Electric Actuators and Solutions: A Troubleshooting Guide

When an actuator fails, small faults snowball, disrupt schedules, and halt lines. Costs rise and safety risks creep in. This practical guide helps you find the issue fast and fix it with practical solutions.

Featured snippet: Most electric actuator issues come from power supply mismatch, wiring errors, voltage fluctuations, mis-set limit switches, or load sizing. Start with visuals, then use a multimeter to check inputs and control signals. Verify torque, recalibrate travel, lube, and re-test. If the actuator does not move, isolate the motor and mechanics step by step.

We build smart valve systems for building automation and heavy industry, but this is a vendor-neutral troubleshooting guide you can hand to technicians today. The examples reflect field practice across HVAC and process plants.

What is an actuator in a valve system, and how does it work?

An actuator turns electrical signals into motion so a valve can open or close with precise control. In industrial settings, actuators provide position to keep fluid flow on target and maintain precise flow through butterfly, ball, and globe bodies. Actuators play a quiet but central role in industrial automation.

Inside the actuator are essential components—a motor, gears, an encoder, and a controller. These internal components push or turn a valve stem via linear thrust or rotary motion (quarter-turn or multi-turn). When sized and installed well, you get smooth operation with low wear.

Want fine position control for dampers or ball valves? See a compact, network-ready driver such as a proportional rotary actuator for tight loops and clean wiring.

Why do actuators fail? Common causes and symptoms to watch

The common causes of actuator failure include undersized torque, poor power source quality, loose connections, phase loss on three-phase, electrical fault in the drive, binding linkages, and harsh operating conditions (ingress, corrosion, extreme temperatures).

Actuators can experience one fault or several at once. Drift, stalls, or slow response add downtime and energy waste. Good logging lets you identify and address the root, prevent unnecessary part swaps, and reduce downtime across shifts.

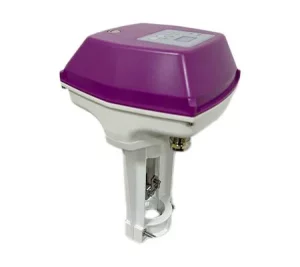

For two-position thrust on globe valves, explore a simple switch linear actuator that keeps setup quick and robust.

How do I troubleshoot wiring, voltage, and the power supply quickly?

Start with eyes and hands. Look for nicked wiring, moisture, and loose connections. Confirm nameplate current and site voltage at the terminals, then use a multimeter for live checks. Low feeds and voltage fluctuations cause the actuator to misread commands.

If commands are present but nothing moves, isolate the drive. Spin the actuator’s motor by hand (de-energized), check insulation, and re-seat ferrules. If needed, use a multimeter to check command/feedback pairings against the manual.

Need telemetry or remote alarms when power sags? A cellular driver like a 4G rotary actuator can notify teams before a stall.

The actuator does not move: step-by-step troubleshooting steps

When an actuator does not move, follow these troubleshooting steps:

1. Confirm power supply and interlocks.
2. Inspect wiring and glands for ingress or damage.
3. Check control signals polarity and scaling; many stalls are configuration.
4. Remove load: disconnect from the valve and test no-load travel.
5. Verify limit switch settings and re-teach ends if needed.

Possible causes include tripped protection, jammed valve hardware, or a bad actuator. Reconnect, run a short cycle, and log the behavior. If you see position drift or stops mid-stroke, continue below.

Why does my actuator stop mid-stroke?

When an actuator stops after starting, check load first. If live torque is near nameplate, you may hit overload protection. Reduce friction, clean the linkage, or size up torque. Then confirm travel: a mis-taught encoder count or reversed ends can confuse the controller.

Also check configuration. The electric actuator’s travel table, stall current limit, and thermal curve must match the job. One wrong checkbox can disrupt a clean cycle. If you need bus diagnostics and trending, a RS485 rotary actuator makes analysis fast.

RS485 rotary actuator

Grinding or clicking noises: are bearings or gears misaligned?

Hearing grinding or clicking from inside the actuator? Inspect bearing wear, misaligned gears, and foreign objects. Heat and noise shorten life. Clean, re-grease all points within the actuator, and check shims.

Remember lubrication. Gears must be properly lubricated and seals healthy. If noise persists, replace worn stages before wear and tear spreads to shafts.

“Noise on start/stop is the first clue—fix it early to protect the gearbox.” — Senior maintenance lead

Position errors on a valve actuator: calibration, stem friction, and linkages

A valve actuator depends on clean mechanics. Bent levers, slack couplers, or a sticky valve stem cause hunting and overshoot. Re-seat hardware, then recalibrate rotary motion or linear travel. Set deadband to match backlash.

Choose the right driver: a linear actuator is ideal for globe valves; compact rotary suits butterfly/ball. For materials compatibility, see pairing examples like an UPVC electric butterfly valve or a stainless steel electric ball valve.

Environment and operating conditions: corrosion, temperature, and ingress

Harsh rooms cause silent damage. Corrosive vapors, corrosion on terminals, and dust raise resistance. Extreme temperatures change grease viscosity and clearances, stressing bearings and couplers in these mechanical systems.

Ensure that the actuator enclosure, heater kit, and cable glands match operating conditions. Seal to IP/NEMA needs, and add heaters in cold rooms. A little prevention avoids a costly malfunction during peak production.

Sizing and selection: voltage, load capacity, and duty

Start with the valve torque curve and add margin for media and cycle rate. Confirm load capacity, duty cycle, and ingress rating. Pick input voltage compatible with site feeds; wrong feeds silently under-drive actuators.

Globe valves often need thrust—a electric linear actuator can be ideal here. For networked systems, choose RS-485, LoRa, or cellular so the actuator fits your automation plan and site wiring.

Electric vs pneumatic actuators: which is best for your site?

Pneumatic actuators are rugged and simple but need dry air, piping, and compressors. Electric actuator designs wire in cleanly, trend well, and accept digital commands. Pick according to utilities, maintenance culture, and control needs.

Remember that actuators don’t live in a vacuum. Air quality, power quality, and training matter more than brand. If you’re unsure, call your actuator manufacturer for access to expert application support.

Hands-on reference tables and quick checks

Symptom → likely cause → action

Field checklist (15 minutes per unit)

• Nameplate capture: model, duty, ingress class.
• Electrical checks: voltage, polarity, ground.
• Mechanical checks: coupler tight, stops aligned.
• Functional: 10% jog, 100% stroke, confirm control signals.
• Data: record travel time trend; this helps identify and address drift.

For quarter-turn networking and diagnostics, review RS485 rotary actuator. For material compatibility, compare UPVC electric butterfly valve and stainless steel electric ball valve.

Mini case study: water plant butterfly valve that stalled under load

A 200 mm butterfly valve stalled at 70%. Measurement showed voltage sag on start and sticky linkage. We cleaned the stem, upped torque, adjusted trip points, and re-taught the encoder. Result: stable cycles, cooler motor, and lower current.

If you handle remote stations, a cellular option such as a 4G rotary actuator can send alarms when current or travel time rises.

Safety and reliability: small steps that pay off

A simple, shared checklist improves actuator’s performance across crews. Log faults and travel counts. During shutdown, inspect gears inside the actuator, look for play, and verify sealing. One more note: an actuator may pass a bench test, yet fail later under excessive force—test under real load.

When in doubt, call for access to expert support. That single call can prevent unnecessary outages and keep projects on schedule.

Selecting by application: rotary, linear, and hybrid control

Quarter-turn duties (ball/butterfly) suit compact rotary drives; globe valves suit a linear actuator. For proportional loops and soft starts, consider a proportional rotary actuator. For simple two-position, a switch linear actuator keeps commissioning fast.

If you must integrate with BMS at scale, Modbus-ready units such as a RS485 rotary actuator simplify mapping and trending.

Quote from the floor

“We don’t replace parts first. We measure first. Most actuator issues turn out to be feed, setup, or linkage—not the gearbox.” — Facility maintenance supervisor

Glossary touchpoints (at a glance)

• Actuator valve assembly: the combined driver and valve body.
• Faulty actuator: a unit with damaged drive electronics or internal components.
• Common electric actuator faults: feeds, scaling, limits, and load.
• Mechanical problems: mis-coupled linkages, dry gears, bent stems.

FAQ

How do I tell electrical from mechanical problems quickly?
Check control signals and power first; use a multimeter to see commands. If it runs off-valve, the valve side binds. If it won’t run free, suspect drive or motor.

What’s the fastest first check when an actuator stops mid-travel?
Confirm power supply, then limits and encoder counts. Many stops are configuration, not hardware.

Are pneumatic actuators still worth it?
Yes. Pneumatic actuators are robust, but need clean air and piping. Electric actuator units wire fast and trend well. Pick what fits your plant utilities.

When should I re-size my driver?
If measured load nears nameplate torque, step up. Undersizing causes heat and early actuator failure.

Does environment really matter that much?
Yes. Corrosive vapors and dust shorten life. Seal glands and choose the right ingress class for your operating conditions.

Sources and further reading

• Actuator fundamentals
• Electric motor sizing and duty
• IEC 60034 (overview) for rotating machines

Key takeaways (pin this)

• Start simple: look, listen, measure; don’t guess.
• Verify power supply, wiring, voltage, and control signals first.
• Re-teach endpoints; wrong limits cause the actuator to stop early.
• Check mechanics—couplers, bearings, grease, valve stem.
• Match load capacity, type, and voltage to the job.
• Log travel time/current to identify and address drift and reduce downtime.
• Call your actuator manufacturer for access to expert help when needed.
