Does the smart valve really work?

I felt the same doubt before I installed my first smart valve. Energy bills were high. Comfort was not stable. Data was missing. I needed proof.

Yes, a smart valve works when it delivers precise control, real data, and stable integration with your HVAC or building controls. It saves energy, reduces manual work, and prevents failures through alerts and diagnostics.

I will show how it works in practice. I will explain the core parts. I will compare value and cost. I will keep every claim simple and practical. I will share moments from real projects that I led.

How does a motorized ball valve work?

System inefficiency hurts. Manual valves drift. People forget setpoints. Pumps work too hard. Rooms swing hot and cold. You need control that never gets tired.

A motorized ball valve uses an electric actuator to rotate a drilled ball by 0–90°. A controller sends a signal. The actuator turns. The port opens or closes. Flow changes fast, repeatable, and precise.

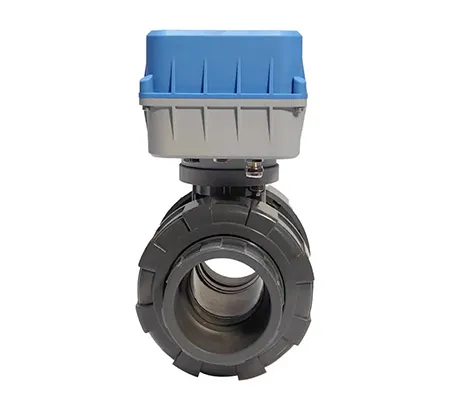

motorized ball valve

Core idea in plain words

A motorized ball valve is a simple machine that does a complex job with high repeatability. The valve body holds a ball with a hole through it. An electric actuator sits on top. The actuator takes a command from a building control system, a thermostat, or a PLC. It turns the stem by a set angle. The ball aligns the hole with the pipe and lets fluid pass. When the actuator turns the other way, the ball blocks the pipe and stops the flow. Because the ball seals well, leakage is low. Because the motion is quarter-turn, the response is quick. Because the actuator follows a signal, the movement is predictable and easy to tune.

Signals and modes that matter

In my retrofits, I see three common control modes. On/Off is the simplest. It opens or closes for two-state loads like zone isolation. Floating control moves in small steps when the controller sends open/close nudges. Modulating control uses 0–10 V or 4–20 mA. It sets the angle to any point between 0% and 100%. This works best for coil control, heat exchangers, and primary–secondary loops where smooth flow is key. Feedback is also important. End switches confirm full-open or full-close. A position signal reports actual angle. These two features are small, but they save hours of troubleshooting.

What changes in the field

The impact shows up in pumps, coils, and comfort. With proper sizing and equal-percentage trim logic in the controller, I see stable delta-T across coils and better heat transfer. Pumps run at lower speed when valves modulate and differential pressure is controlled. Noise in branches drops. Commissioning goes faster because the actuator repeats positions every time. The best part is data. Trend logs show position vs. temperature. I can tune the loop in one visit.

Typical specs at a glance

Are smart valves worth it?

Budgets are tight. Time is short. New tech can fail if it does not fit the site. You need value, not a science project.

Smart valves pay off when energy waste is real, service cost is high, and data is scarce. They reduce kWh and water, cut truck rolls, and reveal problems early through trends and alarms.

What “worth it” looks like on my projects

I measure value in three buckets: energy, maintenance, and risk. Energy savings come from better control of flow and temperature. When valves modulate with good authority, chillers and boilers see stable loads. VFD pumps track demand. I see lower kW per ton and higher delta-T. On one mixed-use building, we replaced stuck globe valves with motorized ball valves and updated the loop control. The chiller plant reduced short-cycling. We cut peak demand by a clear margin in summer. Maintenance savings come from remote checks. If a valve fails to move, I get an alert or I see it in the trend view. I do not drive across town to turn a handle by hand. Risk drops because I can command a fail position in a leak event and I can see temperature rise before a freeze risk in winter.

Cost and timeline in plain terms

Hardware costs more than a manual valve. You pay for the actuator, the electronics, and wiring. The install takes a bit more time. But the payback does not only come from energy. It comes from fewer site visits, fewer emergency calls, and less overtime. If your building has many zones or if your plant serves long piping runs, the remote view alone pays back fast. In my experience, the simple cases return in months. Complex campuses return in one to two years, often sooner when utility rates are high or when controls funding supports the upgrade.

Signs you will see value

A short story from a retrofit

We served a 20-year-old office tower. Pumps ran flat out. People complained daily. We installed motorized ball valves on floor coils with 0–10 V control, tied to a simple differential pressure reset. We added position feedback and created a rule: alarm if valve >90% and room still cold. The rule caught air-bound coils the next morning. The fix took hours, not weeks. The power bill fell. The calls stopped. The team had proof that the investment worked.

What is the purpose of a Motorised valve?

Manual control fails when loads change every minute. People cannot be everywhere. Sensors see change, but you need a device that acts.

A motorised valve exists to automate flow control. It turns control logic into real movement. It keeps systems safe, efficient, and stable without human hands.

Three purposes that matter every day

First, regulation. A motorised valve adjusts flow to hold a setpoint. This can be coil leaving air temperature, heat exchanger outlet, or loop differential pressure. Second, isolation. It can shut a branch for service or for freeze protection. It can also open a bypass path for warm-up or purge. Third, protection. With fail-safe action, the valve moves to a safe state on power loss or on alarm input. I have seen this save equipment when a pump tripped at night. Water stopped where it needed to stop. Damage did not spread.

How it fits with sensors and controllers

A sensor measures a variable. A controller compares it to a setpoint. The controller sends a signal. The actuator moves the valve. The process responds. This loop repeats every few seconds. When tuned well, the result is steady. When tuned poorly, the result is oscillation and noise. This is why commissioning matters. I log valve position, temperature, and pressure. I adjust gains and limits until the loop is quiet. I also set stroke times that fit the process. A fast valve on a slow coil causes hunting. A slow valve on a fast process causes lag. Balance is the key.

Picking features with a clear purpose

A field note on purpose and people

A good motorised valve does more than move water. It makes people’s work easier. My service team spends less time guessing. The facility team sees what the system did last night. The controls engineer can push a change without leaving the desk. Ten minutes saved here and there adds up. In one hospital project, we used motorised valves with built-in fail-safe on all critical AHUs. When a power glitch hit, every valve returned to a safe position. The restart was clean. There was no flood. There was no patient impact. That is the purpose at its best.

Conclusion

Smart valves deliver real control, clear data, and lower risk. They cut waste, speed service, and protect assets when things go wrong.
