1) What is an electric control valve and when should you specify it?

An electric control valve combines a precision valve (the mechanical devices doing the throttling) with an actuator that moves it electrically. In building systems, it’s widely used to control chilled-water, hot-water, and condenser-water circuits. In process lines, it regulates fluid flow, pressure, or temperature inside the control loop.

In practice, electric actuators shine when you need quiet operation, easy wiring, and fast integration with a BAS. Pneumatic or hydraulic drives still make sense where compressed air is standard or environments are hazardous; solenoid valves remain ideal for quick on-off duties or pulse dosing. Choosing well avoids energy waste, nuisance trips, and premature wear.

Helpful internal resources: see our smart Zigbee water valve for BAS retrofits and RS485 regulating valve for BMS/SCADA for network-ready options.

2) Rotary vs linear actuator: how do you choose?

A rotary actuator turns quarter turn valves (e.g., ball valves and butterfly valves). A linear actuator drives stems up and down on globe valves or diaphragm valves, delivering excellent throttling resolution. Some assemblies are available in 2-way and 3-way to handle mixing or diverting.

Consider torque vs thrust, cycle speed, duty cycle, and control signal. Rotary is compact, often ISO-mountable (iso 5211 patterns), and rugged for heavy-duty service. Linear actuators give fine stroke control for stable temperature and pressure loops. Both styles can actuate precisely with the correct sizing and actuation method.

Explore: our proportional rotary actuator for precise BAS control and floating-point regulating valve for simple step control show both approaches in plug-and-play packages.

3) Ball valves vs globe valves vs gate: which valve types fit which job?

Ball valves (quarter-turn) deliver tight shutoff, low pressure drop, and fast open and close. They’re ideal for isolation and on-off service yet, paired with the right characterization, they can modulate, too. Globe valves excel at precise throttling thanks to stem-guided control trim.

Gate valves are classic isolation operated valves with minimal drop when fully open; not the best for throttling. Plug valves can handle dirty services and some corrosives. Picking among these valve types depends on duty (isolation vs throttling), medium, and process control stability needs.

See product examples: stainless-steel electric ball valve for tight shutoff, or UPVC electric butterfly valve when weight and corrosion resistance matter in large diameters.

4) How do I size for flow control and stable flow rate?

Start with design flow rate, ΔP across the valve, medium, and temperature. Right-sizing the flow control valve means avoiding hunting at low load and limiting noise at high load. For coils, look at valve authority (ΔP valve / ΔP circuit) to keep the control loop steady.

Rule of thumb: never oversize. A too-large valve sits barely open, causing poor resolution. A too-small valve starves the coil or pump, limiting capacity. Use equal-percentage trim on globe valves for smooth part-load control and characterized balls on quarter-turn valves to mimic equal-percentage behavior.

Quick comparison (illustrative):

“Size for control, not for pipe diameter.” It’s normal if the valve is smaller than the pipe.

5) What signals, voltage, and controller options are common?

Most electric packages accept 0–10 V, 2–10 V, or 4–20 mA. Modbus, BACnet-MS/TP, and RS-485 are common for networking. Choose fail strategies (fail-safe, spring return, or double acting) based on your risk plan. Confirm voltage (24 V, 120/230 V) and whether you need floating, proportional, or on/off control.

Your controller should support feedback and diagnostics (travel, runtime, fault codes). That visibility lets you find a sticky valve early and plan service before a leak becomes downtime. On safety loops, review interlocks and emergency behavior so the assembly de-energizes to a safe state.

6) Materials, valve body, seal, and leak prevention

Match the valve body to the medium: bronze/brass for water, stainless for aggressive blends, UPVC/CPVC for corrosives at lower temperatures. Seat and seal choices set shutoff class and life. For hot water or glycol, verify elastomer compatibility; for steam, evaluate pressure/temperature ratings.

A clean strainer upstream protects trim. In new work, flush before final install to protect seats and bearings. Tight mounting, correct orientation, and good electrical termination help safety and reliability long-term. When in doubt, pick high-performance assemblies tested to relevant standards.

7) Safety and reliability: fail-safe and duty cycle

Where valves must move on loss of power—freezing coils, relief lines, or mission-critical flows—use fail-safe designs. Many rotary kits include spring return modules; others use supercaps or batteries. For larger multi-turn stems on globe valves, check thrust safety factors and duty cycle.

Consider ambient heat, cycling rate, and environment. For explosive areas, pneumatic or hydraulic drives may be preferred. For standard mechanical rooms, electric works well—and quieter. Specify clear labels for flow direction and set-points so the operator can verify behavior quickly during commissioning.

8) Automation and networking: valve automation that improves performance

Modern valve automation ties the actuator to the BAS. With open protocols, trending, and diagnostics, you catch drift, miscalibration, or stiction early. These features improve performance without constant manual checks. You can schedule, alarm, and tune loops remotely.

“Smart” assemblies can detect overloads and stalls, then protect themselves. Some respond to electromagnetic interference filtering, ensuring stable signals. Others include position verification. The goal is simple: predictable, efficient valve motion you can trust day after day.

Explore: RS485 regulating valve (heating networks) and 4G/Lora rotary actuators for remote sites to see networking in action.

9) Installation & commissioning: from port to pump

Before install, verify medium, direction, and port size. Dry-fit, then mount the actuator per manufacturer guidance (check the iso pad, couplers, travel limits). Wire per diagram and test local commands. Tag set-points for the manual operator and mark any end-stops.

During commissioning, balance flows, confirm feedback, and record baseline data (command vs position vs ΔP). Add a strainer where debris risks exist to protect seat and seal. On services driven by pneumatic valves, verify adequate compressed air quality; on electric drives, check voltage stability.

10) Cost & ROI: where does the payback come from?

A good valve package reduces energy, service calls, and complaints. Better modulation keeps coils at target, which lowers reheat and pump/fan energy. Fewer nuisance alarms mean more uptime. Diagnostics cut troubleshooting hours. That’s real money back to the project.

Illustrative TCO table (5-year):

“Pick the right assembly once, and you’ll forget it’s even there.”

11) Real-world applications and a simple case study

Application: university lab AHUs needed precise coil control. Old two-position solenoid valves were short-cycling. We replaced them with characterized ball valves and electric actuators with 2–10 V control. The BAS could modulate position smoothly, keeping labs at setpoint and saving chilled water.

Results: coil ΔT rose 15%, hot-deck overshoot vanished, and alarms dropped. The BAS trend showed tighter loops, which the facilities team loved. The valves also kept shutoff tight during maintenance windows. That’s how a small upgrade yields a big comfort and energy win.

12) Product matrix: types of valves, actuation, and application

Shop examples from our plant:

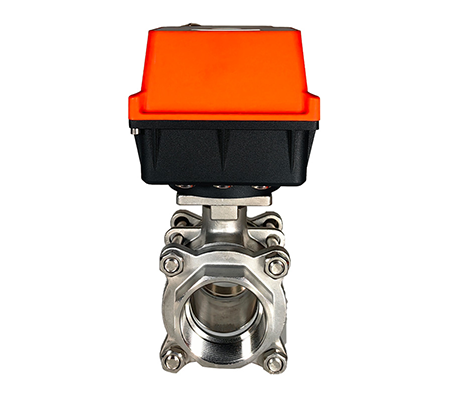

– SS electric ball valve assembly for tight shutoff and BAS control

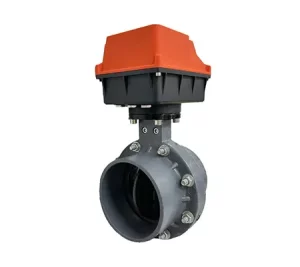

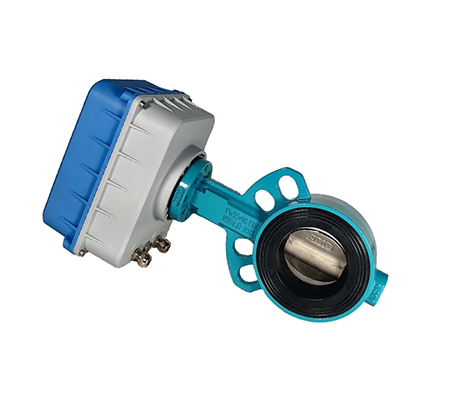

– UPVC electric butterfly valve for lightweight, corrosion-resistant large bores
– Proportional rotary actuator for smooth loop tuning

13) Signals and motion: on-off, floating, proportional (and when each fits)

On-off is simple and robust—ideal for isolation or safety duties. Floating (a.k.a. floating-point or incremental) moves in steps; great for retrofits where the controller only provides raise/lower. Proportional (0–10 V/4–20 mA) gives smooth modulate performance and the best comfort/energy balance.

For BAS points, include command, position feedback, fault status, and runtime counters. Those let you spot creeping torque, travel limits, or binding stems before failure. It’s easy insurance for uptime.

14) Choosing materials and ratings (water, glycol, oil and gas)

For HVAC water and glycols, choose bronze or stainless with EPDM or FKM seats. For light chemicals or brine, UPVC/CPVC is sensible. In oil and gas or hot thermal fluids, look at alloy trim and higher shutoff classes. Always match body rating to line pressure and temperature.

Large-bore butterfly valves (our single mention as required) cut weight and cost for cooling towers. Check torque carefully; big discs need stout rotary drives. For steam or high temps, confirm packing design, stem guides, and lubrication.

15) When a solenoid or pneumatic valve makes more sense

Solenoid valves excel for fast, binary actions (drain, blowdown, relief), and where a low-power coil does the job. They can be electromagnetic poppet or diaphragm-assisted designs. For hazardous zones, pneumatic valves are great because the actuator energy is compressed air, not electricity.

If a system already has air, pneumatic can be cheaper to deploy across many valve points. For remote sites without power or comms, consider telemetry options (LoRa/4G) and battery-backed drives.

16) Tips to avoid common specification mistakes

• Don’t oversize. Pick authority for steady loops.
• Confirm signal. Match 0–10 V/4–20 mA and voltage.
• Mind duty cycle. High-cycle apps need rated drives.
• Think failure mode. Choose fail-safe, spring return, or double acting.
• Check mounting. Ensure pad, coupler, stroke match.
• Plan access. Make room for service and a manual operator.

Pro tip: for quarter turn valves and quarter-turn valves, verify stop screws and feedback calibration during start-up.

17) Spec keywords (quick glossary you can drop in your spec)

• Actuator: device that moves the valve (linear or rotary).
• Electric actuators: motor drives with position control, feedback, and diagnostics.
• Valve body/seal: wetted parts and shutoff components.
• Port: passage through the valve trim.
• Voltage: drive power (24/120/230 V).
• Actuation: motion type (on-off, floating, proportional).
• Flow rate: gpm or L/s through the valve at ΔP.

Frequently asked questions

How do I decide between rotary and linear?
Use rotary on ball valves or butterfly valves; pick linear actuators for globe valves or diaphragm designs. Rotary is compact; linear gives fine throttling. We’ll model both and recommend the best fit.

What’s a good signal choice for energy savings?
Proportional control (0–10 V/4–20 mA) keeps the control loop stable and cuts reheat. Floating works for retrofits. We’ll help align with your BAS controller.

Do you support network protocols?
Yes—RS-485/Modbus, BACnet-MS/TP, and more. See our RS485 regulating valve and Lora rotary actuator pages for details.

How do you handle failure modes?
We offer fail-safe (spring return or stored-energy) and double acting drives. On power loss, the actuator moves to safe position automatically.

Can your assemblies handle rough service?
Yes. For harsh duty, choose heavy-duty bodies and trims. We also offer stainless options and UPVC for corrosives.

Do you offer 2-way and 3-way options?
Yes—many assemblies are available in 2-way and 3-way. We’ll match the mixing/diverting duty to the job.
