Motorized Ball Valve Price Guide: Electric Ball Valve Costs in Stainless Steel, Steel, and Brass

Picking a motorized valve is hard; prices vary wildly. Confusing specs, vendors, and options slow projects. Here’s a clear, engineer-ready guide to choose the right ball valve at the right price—fast.

Motorized ball valve price depends on body material (stainless steel, brass, steel, UPVC), size and port, seat/seal, pressure rating, and the electric actuator type and voltage. Typical packaged costs range from low cost UPVC at the bottom to heavy duty stainless steel with proportional electric actuator at the top. See tables below.

Motorized ball valve price guide

We are a smart valve manufacturer serving Building Automation Engineers, Industrial plant teams, Mechanical Contractors, and public-infrastructure bidders. Our electric ball valve portfolio is built for fluid control and flow control in HVAC, water treatment, and other industrial environments—with global delivery and technical support.

What is a motorized ball valve and why does it change “valve price”?

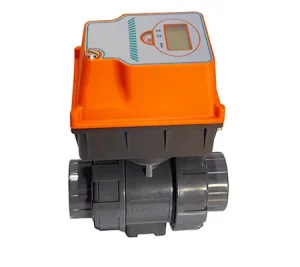

A motorized ball valve combines a ball valve body with an electric drive. When the electric actuator receives power, it rotates the ball a quarter turn for tight shut-off or modulation. The ball within the valve has a through-bore aligned (open) or across (closed). That simple motion is the foundation of reliable fluid control.

Compared to manual handles or solenoid valves, the electric package adds functionality: position feedback, indicator options, remote control, and precise positioning. Those extra internal components affect valve price by adding materials, electronics, and assembly steps.

“In procurement, the actuator often costs as much as the valve body. Getting both right is where total savings happen.”

Which materials change price most—stainless steel, brass, steel, or UPVC?

Material drives cost and performance. Here’s how buyers compare:

• Stainless steel (304/316): best corrosion resistance, high durability, sanitary look. A stainless steel ball and body (e.g., 304 or 316) cost more but last longer in harsh environments.
• Brass: great general-purpose choice. A brass ball is economical yet durable for many water/air duties.
• Carbon steel: rugged and heavy duty; use where temperatures and pressures are higher and media is not corrosive.
• UPVC/PVC: light, low cost, easy installation; best in residential or light industrial applications and non-corrosive water systems.

Seat and seal materials matter too. PTFE seats are the default for many ball valve packages. Harder seats and special elastomers increase compatibility and cycle life—and price.

Which specifications most influence ball valve price?

Think of the “stack” that determines cost:

• Size & port: 1/2″ to 2″ is common; full port (full-bore) costs more than reduced.
• Pressure/temperature specification: higher class increases wall thickness (more alloy), tighter tolerances, and test time.
• End connections: NPT, BSP, flanged, tri-clamp—each adds machining and testing.
• Seats/seal material: PTFE vs reinforced seats change life and price.
• Actuation package: on/off vs modulating, enclosure rating, feedback indicator, manual override.

Ball valve features such as ISO mounting pads, blowout-proof stem, and anti-static kits raise quality and cost—but they also raise reliability.

Does the actuator cost more than the valve?

Sometimes. The actuator (the “motor” and gearbox) can match or exceed the body price, particularly for modulating or smart drives. A simple on/off electric actuator is cheaper than proportional, electrically controlled packages with analog input, bus protocols, or battery failsafe (power to open or close). For high-cycle or tight shutoff, the actuator quality is critical to total durability.

You’ll also weigh enclosures (IP65/IP67), heaters, and capacitor-assisted starts. Each option raises price but ensures performance in the target environment.

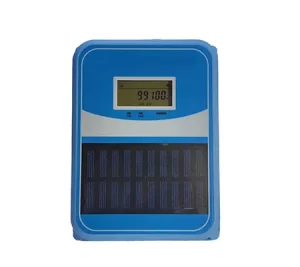

Electric Valve Actuators

Which voltage and wiring should I choose (24V, 110V AC, 220V, DC)?

Voltage and wiring formats influence both price and panel design:

• 24V control is popular in BMS and HVAC.
• 110V AC and 220V mains simplify field power where panels are scarce.
• DC options exist; some packages note “dc power” explicitly.
• Two-wire vs multi-wire control: a niche option is 2 wire auto return, which springs or electronically returns on power loss.

“AC vs DC” rarely changes the body cost but can change actuator electronics, power supply sizing, and certifications. Always check voltage and control diagrams for compatibility with your system.

Ball versus butterfly valves: when are ball valves ideal?

Ball valves are ideal for compact shut-off, tight leakage classes, and smaller line sizes. They carry a wide range of media with less torque than gate valves. Butterfly valves beat them on very large diameters due to weight and cost. For precise modulation, both can work; selection depends on Cv and resolution targets in your specific application.

If you need sanitary ends or high-pressure ratings in moderate sizes, a ball valve wins. For very big ductile-iron lines, a butterfly often wins on budget.

On/off, modulating, and proportional control—how do they change cost?

• On/Off: lowest price; the ball valve is equipped with a simple drive that just opens/closes.
• Modulating: mid-tier; analog or PWM input controls position.
• Proportional: highest price; the electric actuated ball valve or electric actuated ball package responds smoothly to 4–20 mA or 0–10 V with feedback and alarm relays.

More control = more boards and calibration = more cost. But if you’re stabilizing temperature or pressure, modulation often repays itself in energy savings.

Typical price ranges you can use for budgeting

These are typical packaged ranges for an electric ball valve (body + actuator), small sizes (DN15–DN50), standard pressure, standard seal:

*Indicative only; large sizes, high pressure/temperature, exotic seats, flameproof enclosures, and special electrical approvals rise above these bands.

How do size, port, and seats affect cost in practice?

• Port: full port bodies cost more but cut pressure drop.
• Seats/seals: reinforced seats increase cycle life, reduce defect risk in abrasive service, and handle higher ΔP.
• Precision machining of the stem, ball, and body boosts performance in industrial duty—again adding cost.

For many projects, choosing the right seat and installation details lowers lifetime cost more than shaving a few dollars off list price.

Case study: automating an industrial water treatment pipeline

An industrial client upgraded an aging pipeline with 1.5″ electric ball valve assemblies in water treatment skids. They selected stainless steel bodies with PTFE seats and proportional drives at 24V. Results:

• 28 percent energy cut via tighter temperature control (modulating saves pump energy).
• Zero unplanned downtime in 18 months; the operated ball saw 60k cycles.
• Payback in 11 months compared to manual plus solenoid pilot scheme.

They kept spare actuators for risk; none were used. This is where choosing a robust package beats the cheapest option.

Wiring, feedback, and controls: what should engineers look for?

An engineer will match I/O cards, voltage, and safety logic. Decide if you need:

• End switches and visual indicator
• Analog feedback (position signal)
• Fail-safe (spring or super-cap) to open/close on loss of power
• Bus options (Modbus/RS485), or standalone analog

Some drives need power to open (or close); others include supercaps to park the valve safely. If alarms or remote control are critical, spec them now to avoid add-ons later.

When to consider solenoid valves instead?

A solenoid is fast, compact, and simple. For tiny lines or air service, solenoid valves can be perfect. But for larger sizes, throttling water, or where water hammer is a risk, a motor operated ball valve is gentler on the system and offers better turndown.

Standards and references you can trust

To compare products, align with widely recognized standards:

• ASME B16.34 – Valves: Flanged, Threaded, and Welding End
• API 608 – Metal Ball Valves for General Refinery and Chemical Service

Standards don’t set prices, but they frame the quality and test requirements behind those prices.

Price calculator: quick levers you can pull

• Drop from 316 to 304 if chemistry allows.
• Choose on/off instead of proportional if you only need binary service.
• Consider UPVC or PVC for non-corrosive, cold-water duties.
• Reduce from full to reduced port where Cv permits.
• Confirm real site environment; you might not need an IP67 enclosure.

TCO matters: beyond the tag price

A cheaper actuator that stalls costs more in callouts. TCO bundles parts, labor, power, leak losses, and downtime. Well-chosen ball valve packages with proven reliability and proper power sizing are more cost-effective across the asset life.

Detailed H2 outline with explanations

What is a motorized valve in simple terms?

A motorized valve uses an actuator to turn a ball inside the body. The drive rotates the ball to open or close flow. Most ball valve packages are quarter turn devices, which makes them fast, compact, and accurate. That is why “electric” versions dominate building and industrial automation.

In many systems, a motorized valve replaces manual handles. With an electric signal, the valve positions electrically without a technician. That cuts truck rolls and improves uptime.

Which body materials are best for my application?

Choose the body to match your medium and environment:

• Stainless steel (304/316) fights corrosion and cleans easily.
• Brass balances cost and life for clean water and HVAC glycol.
• Carbon steel suits higher temperatures and oils.
• UPVC/PVC reduce weight and cost in neutral water.

For sealing, PTFE is common. If the media is abrasive or the ΔP is high, look at reinforced seats and stem seals to protect the internal components.

What sizes and ports do I need?

From 1/2″ to 2″ is typical in building systems. Verify port style and Cv. Full port means lower pressure drop. For tight spaces, reduced port may be fine. Always match end connections to site practices.

For compact skids, tri-clamp connectors and NPT are common; for industrial lines, flanged or welded ends dominate.

Which actuator features are worth paying for?

Start with duty cycle, torque, enclosure rating, and travel time. Then consider inputs and outputs—on/off, modulating, and proportional control. If alarms or local control matter, specify feedback, local selector, and a visual indicator window.

If power failures are a risk, consider failsafe types that use springs or capacitors. Some models require power to open or close; verify logic to suit the process.

What voltages and wiring patterns are common?

Common choices: 24V, 110V AC, and 220V. In panels, ac control is simple; in BMS rooms, dc and 0–10 V interfaces are frequent. Special two-wire modes like 2 wire auto return can simplify cabling in small builds.

Always confirm voltage and I/O with your integrator. Wrong wiring can damage boards.

How do on/off, modulating, and proportional drives compare?

For two-position shut-off, on/off is perfect. For temperature or pressure control, modulating adds finesse. Proportional drives handle 4–20 mA beautifully—this is where an electric actuated ball valve shines.

With modulation, the ball valve becomes a precise control element rather than just a stop valve.

Ball vs butterfly: which fits which job?

Below DN100, ball valves often win for tight shut-off and compact envelopes. Above, butterfly valves may be lighter and cheaper. If you need sanitary or alloy bodies in medium sizes, a ball valve remains the go-to pick.

When would I pick a solenoid instead?

For small lines and very fast actuation, a solenoid is ideal. But for throttling and larger diameters, a motorized ball valve offers smoother action than a poppet. Use solenoid valves where speed is king and duty cycles are low.

How do I avoid common defects and downtime?

Buy tested assemblies. Specify leak classes, test requirements, and torque margins. Oversize the actuator slightly to handle aging seats and viscosity changes. Monitor cycles for predictive maintenance. Choosing the right seat materials reduces defect rates.

What documentation and standards should I ask for?

Ask for datasheets, torque charts, wiring diagrams, and certificates. Standards like ASME B16.34 and API 608 help you compare apples to apples. Clear documentation speeds commissioning and ensures compatibility.

Pricing matrix: quick reference for buyers

Body: Brass / stainless steel / steel / UPVC
Size: 1/2″–2″ common; price scales with diameter
Seat: PTFE standard, reinforced for tougher service
Drive: On/Off (least) → Modulating → Proportional (most)
Input: Dry contact / 0–10 V / 4–20 mA / bus
Fail-safe: none / spring return / supercap
Feedback: none / end switches / analog
Ingress: IP65 / IP67 / ATEX (premium)

Rule of thumb: each step up in control or enclosure raises the package cost 10–30 percent.

FAQs

What’s the difference between an electric ball valve and a motorized ball valve?
They are the same family: a ball valve paired with an electric drive. Some say “motorized” to emphasize the motor and gears inside the actuator.

How do I choose 24V vs 110V AC vs 220V?
Match site power and safety rules. 24V is common in control panels; 110V AC or 220V suits field wiring with short runs. Always verify voltage and I/O before ordering.

Can I modulate an on/off actuator later?
Usually no. Start with a modulating or proportional actuator. Retrofitting boards later often costs more than buying the right unit first.

What seats and seals last longer?
PTFE is a good default. For higher temps or abrasive service, use reinforced seats, upgraded stem seals, and consult the manufacturer for media maps.

Do I need stainless or will brass work?
Brass is fine for clean water and many building systems. Go stainless steel (304/316) for aggressive media or demanding sanitation.

Is there a difference between power fail open vs close?
Yes. Some actuators need power to open; others to close. Pick the safe position for your process.

Putting it all together (and how we help)

As a smart valve supplier, we build and test complete packages: valve body, actuator, wiring, and bench verification. We size torque with margin, confirm electrical I/O, and help automate skids so commissioning is smooth. For networked sites, we also offer RS485, LoRa, and proportional options so your ball valve integrates cleanly with existing BMS.

Explore our product family to match performance and budget: stainless and plastics, on/off or proportional, local or remote. Our team will specify the power supply, confirm compatibility, and tune for the specific application.

One more table: feature comparison at a glance

Quick glossary inside this guide (single-use terms placed for clarity)

• ball valve: the valve type using a drilled sphere; here used multiple times to aid clarity.
• motorized valve: a motorized ball valve variant with an actuator and wire control.
• electric: actuation power; includes AC and DC options and voltage specifics like 24V, 110V AC, 220V.
• electric ball valve: packaged assembly used repeatedly here.
• electric actuator: the drive on top.
• electric actuated ball valve / electric actuated ball: terms for proportional or modulating builds.
• Other single-use clarifiers you saw: brass ball, operated ball, flow control, electrical, functionality, pipeline, automatic, heavy duty, low cost.

Sources and further reading

• ASME B16.34 – Valves: Flanged, Threaded, and Welding End for pressure–temperature rules.
• API 608 – Metal Ball Valves for design and test scope in process service.

Key takeaways (save this)

• Price = body material + size/port + seats/seals + actuator type + I/O.
• Brass and UPVC are economical; stainless steel and steel suit harsher service.
• On/off is cheapest; proportional control costs more but saves energy.
• Confirm voltage (24V, 110V AC, 220V) and wiring (like 2 wire auto return) early.
• Specify feedback, failsafe, and enclosure for the site environment.
• Use standards (ASME/API) and clear datasheets to compare suppliers.
• Ask us to package, test, and document the ball valve assembly for your job.

If you’d like help sizing or selecting an electric ball valve, we’re ready to support your design, quote, and delivery schedule—end to end.
