Balancing Valve: Manual & Automatic Balancing for Circuit Flow

When a building’s heating or cooling never feels quite right, or an industrial process wastes energy, the real issue is often poor balance. Left unchecked, this hidden problem drains efficiency, increases costs, and causes headaches for everyone from engineers to facility managers. What’s the solution? Балансировочные клапаны—the quiet workhorses of any well-designed flow control system.

Balancing valves ensure that water or other fluids are distributed evenly and efficiently throughout a piping network, preventing overflows, underflows, and temperature swings. Whether manual or automatic, these valves play a vital role in optimizing performance, energy use, and comfort in HVAC and industrial applications.

What Is a Balancing Valve and Why Does Flow Balance Matter?

А балансировочный клапан is a precision flow control device designed to regulate and stabilize the distribution of fluids—typically water—in a piping network. The main purpose of this valve is to achieve optimal balance across all branches of a system, preventing some circuits from getting too much flow and others too little.

In a modern система отопления, вентиляции и кондиционирования воздуха or industrial plant, lack of balance leads to energy waste, equipment wear, and uneven heating or cooling. Balancing valves directly address this by maintaining the correct flow rate and differential pressure, ensuring each zone or process gets exactly what it needs.

Why Flow Balance Is Essential

• Prevents hot/cold spots in buildings
• Maximizes energy efficiency in heating and cooling systems
• Reduces wear on pumps and piping
• Supports accurate температура control and comfort
• Avoids noise, cavitation, and maintenance issues

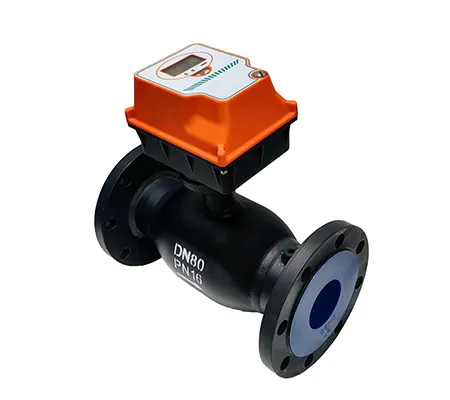

What Is a Balancing Valve

How Do Balancing Valves Work in HVAC and Industrial Systems?

Балансировочные клапаны operate by restricting or allowing the flow of fluid through an orifice, ball, or other control mechanism, which can be adjusted to achieve a target flow rate. They are critical in hydronic balancing, making sure all parts of a system operate under optimum условия.

The Science of Flow Control

In a hydronic (water-based) heating or cooling system, each branch or circuit must receive the correct amount of water. Balancing valves are installed at key points to measure, adjust, and stabilize the flow, using settings such as fixed orifice, variable orifice, или venturi technology for high accuracy.

“A well-calibrated balancing valve guarantees that each coil or terminal gets the right flow, no matter how variable the system load is.”

Key Functions

• Flow measurement: Integrated meters or ports let installers check flow rate directly
• Pressure adjustment: Maintains set point for differential pressure
• Isolation & shut-off: Many models also provide a means to isolate or bypass sections for maintenance

Read more: Learn about flow regulating valve solutions and their integration into smart systems.

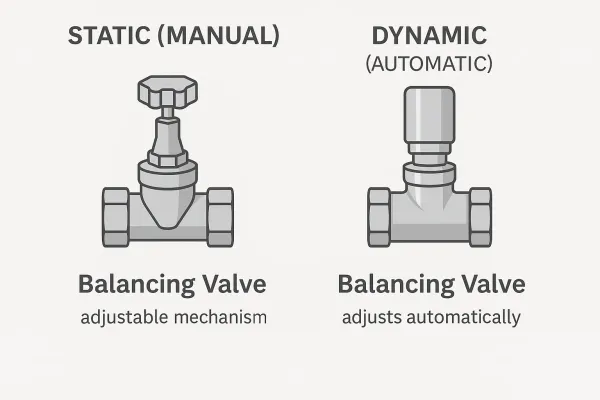

Types of Balancing Valves: Manual vs. Automatic Models

Choosing the right balancing valve means knowing the differences between руководство и automatic models.

Ручной балансировочный клапан

• Operation: Set by hand using a calibrated multi-turn handle or memory stop
• Best for: Systems with relatively stable loads or when initial balance is enough
• Feature: Often includes integral test ports for on-site measurement

Автоматический балансировочный клапан

• Operation: Uses built-in regulators to automatically adjust flow, compensating for changes in system demand or pressure
• Best for: Variable-flow systems (like modern HVAC) where loads change throughout the day
• Benefit: Delivers точность balance with little ongoing maintenance

Related: Explore our auto balancing valves и ductile iron balancing valve models for modern installations.

Выбор правильного балансировочного клапана

Key Features of High-Performance Balancing Valves

Not all balancing valves are created equal. Here’s what to look for:

• Balancing accuracy: Advanced models maintain flow within ±5% of set point
• Durability: Options in carbon steel, ductile iron, brass, or stainless steel
• Memory stop: Remembers last setting after shutdown or maintenance
• Inline design: For easy installation in tight mechanical spaces
• Calibration capability: Integral test ports or flow meters for precise измерение
• Connection types: Flange, thread, or weld to suit any system

Further Reading: Узнайте больше о balancing valve models и water balancing valve technologies.

Where Are Balancing Valves Used? Typical Applications

Balancing valves are everywhere that precise flow control is needed. Typical applications include:

• HVAC systems: Achieve perfect balance in heating and cooling circuits, radiators, fan coils, or chilled beams
• Industrial processes: Distribute water, chemicals, or thermal fluids accurately
• District energy: Balance large-scale hot or cool water distribution networks
• Public buildings: Hospitals, schools, and offices rely on balancing valves for comfort and safety
• Smart buildings: Integrate with building automation systems for remote monitoring and контроль

“Installing a balancing valve in every key circuit guarantees comfort, reduces complaints, and cuts utility bills.”

For advanced solutions, check out our intelligent valve portfolio и smart valve water series.

Where Are Balancing Valves Used

Balancing Valve Sizing, Selection, and Model Options

Selecting the right valve means considering:

• System size and flow rate (calculate GPM or L/s needed per circuit)
• Pressure rating and temperature
• Connection style (threaded, flanged, welded)
• Automatic vs. manual control
• Совместимость материалов (carbon steel, ductile iron, UPVC, stainless steel)
• Certifications and quality standards

Table: Sample Model Comparison

Model insights: Наш сайт ductile iron balancing valves are ideal for tough environments requiring lasting balance.

The Role of Balancing Valves in Energy Efficiency and Sustainability

Balancing valves are not just about technical accuracy—they also drive energy savings and environmental benefits:

• Reduce pump energy use by cutting unnecessary circulation
• Lower heating and cooling costs by distributing temperature evenly
• Support green building certification (LEED, BREEAM)
• Cut emissions by maximizing system efficiency

According to studies, properly balanced HVAC systems can save 10–20% in annual energy consumption—directly impacting the bottom line.

Explore our pressure regulating valves for energy-conscious designs.

How to Calibrate, Install, and Maintain a Balancing Valve

Proper installation and calibration ensure that your balancing valve delivers top performance. Here’s a quick guide:

Installation Steps

1. Select proper location—usually at return side of circuit
2. Ensure system is depressurized before cutting or threading pipes
3. Install valve with flow direction arrow aligned
4. Tighten flange or thread connections to spec

Calibration and Setup

• Use an integral meter or external tool to measure flow rate
• Adjust handle or set point until design flow is achieved
• Lock memory stop for repeatability

Maintenance Tips

• Inspect periodically for leaks or clogging
• Exercise shut-off and bypass features to prevent sticking
• Clean filter or strainer as needed

Learn more about our Y-filter balancing valve product for built-in filtration and long-term reliability.

Common Issues: Troubleshooting Flow, Pressure, and Balance

Balancing valves, like any product, can encounter issues. Here’s what to watch for and how to solve it:

Typical Problems

• Low flow rate: Check for closed isolation or clogged filter
• Noisy operation: May be a sign of high differential pressure—recheck valve size
• Difficulty maintaining balance: Could be incorrect calibration or missing automatic balancing feature

Quick Solutions

• Verify pump operation and system pressure
• Confirm set point or memory stop has not moved
• Clean or replace worn components

Совет: For advanced troubleshooting and remote monitoring, smart valves integrated with building automation systems offer new levels of support and control.

Choosing the Right Manufacturer for Reliable Valve Solutions

As a smart valve manufacturer, we deliver not only products, but also long-term value for every partner:

• Global delivery: On-time shipment to every continent
• Customizable designs: Tailored to any project, from HVAC to industrial
• Expert technical support: Dedicated engineers for system integration and troubleshooting
• Comprehensive portfolio: From manual balancing valves to intelligent, remote-controlled models

“Our balancing valves are designed for the highest quality, precision, and reliability—helping you build, maintain, and operate world-class heating and cooling systems.”

See our full range of балансировочные клапаны и electric valve products for every need.

Frequently Asked Questions

What does a balancing valve do in a hydronic system?
A balancing valve controls the flow rate through a branch of a piping system, ensuring every zone receives the right amount of heating or cooling.

How do I know if I need an automatic or manual balancing valve?
If your system experiences variable loads throughout the day, choose automatic. For stable, fixed-flow systems, manual valves are often sufficient.

Are balancing valves necessary in small commercial buildings?
Yes. Even small systems can suffer from flow imbalance, leading to uneven comfort and higher energy costs.

What’s the difference between a balancing valve and a control valve?
A balancing valve sets the correct flow rate; a control valve adjusts flow dynamically based on temperature or demand signals.

Can balancing valves be integrated into building automation systems?
Absolutely. Many smart balancing valves offer digital outputs and remote adjustment, ideal for modern building management platforms.

How often should balancing valves be serviced?
Check annually for signs of clogging or wear. Many modern models include easy-access filters and shut-off features for fast maintenance.

Key Takeaways: What to Remember

• Balancing valves are essential for flow, pressure, and temperature stability in any HVAC or industrial system.
• Proper balance cuts energy costs, boosts comfort, and extends equipment life.
• Choose between manual and automatic models based on system complexity and load variability.
• Regular calibration and maintenance ensure lasting performance.
• Work with an expert manufacturer offering reliable technical support and tailored solutions.
