Motorised Valve: The Complete Guide for Reliable Heat and Hot Water Control

Are cold rooms, unpredictable heat, or system failures costing you money and time? These problems often come down to one thing: a faulty or outdated valve. Discover how upgrading to a моторизованный клапан can give you complete control, reliable performance, and true comfort—while saving energy.

A motorised valve is an electrically operated valve that opens or closes a port to control the flow of hot water or heat within a system. It improves efficiency and automation in heating, hot water, and industrial control systems.

План статьи

1. What Is a Motorised Valve and How Does It Work?
2. Why Are Motorised Valves So Important for Heat and Hot Water Control?
3. What Is a Zone Valve and How Is It Used?
4. How Does the Motor and Actuator Enable Valve Automation?
5. How Do 2 Port Motorised Valves Compare to Other Types?
6. Manual Lever, Microswitch, and Position: How Do They Affect Valve Operation?
7. What Are the Most Common Faults in Motorised Valves?
8. How to Troubleshoot or Replace a Faulty Motorised Valve?
9. Key Features of High-Quality Motorised Valves
10. Smart Valve Technology: Digital Control for Modern Systems
11. FAQs About Motorised Valves
12. Summary: What to Remember About Motorised Valves

What Is a Motorised Valve and How Does It Work?

А моторизованный клапан is a specialized valve that uses a small мотор and an привод к открыть или закрывать a port within a pipe. This movement is triggered by an electrical signal from a thermostat, timer, or control system. When heat or hot water is needed, the actuator powers the motor, which shifts the valve spindle to the correct position. The microswitch inside the actuator confirms the valve’s position and sends feedback to the control panel or boiler.

Key Points:

• Motorised valves are found in central heating, hot water, and many HVAC systems.
• They automate flow, reduce manual intervention, and boost efficiency.
• A valve can be 2 port or 3 port depending on the system’s needs.

Пример:
A smart valve in a building’s heating system receives a signal to provide heat to a certain zone. The actuator powers the motor, opening the valve and allowing hot water to flow to that part of the building.

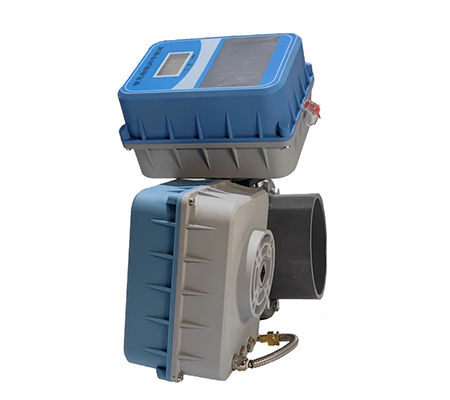

motorised valve actuator in action

Why Are Motorised Valves So Important for Heat and Hot Water Control?

Моторизованные клапаны play a crucial role in ensuring heat and hot water are delivered only where and when needed. This precision helps building automation engineers, plant managers, and maintenance teams:

• Экономия энергии by reducing unnecessary heat loss.
• Maximize comfort for occupants with responsive temperature control.
• Minimize downtime by enabling remote, reliable operation.

According to industry studies, buildings with automated motorised valves can reduce heating energy costs by up to 25% over manual systems. The difference is even greater in complex multi-zone setups, where efficient zone valve use is key.

“Switching to modern motorised valves was a game-changer for our industrial facility. We cut maintenance hours and slashed energy bills.”
— Facility Maintenance Supervisor

What Is a Zone Valve and How Is It Used?

А zone valve is a type of motorised valve designed to control the flow of hot water or heat to specific zones within a building. Each valve is connected to its own thermostat or control, so you can heat different areas independently.

Typical Applications:

• Central heating in commercial buildings
• Underfloor heating
• Hot water cylinder isolation

Benefit:
Using zone valves lets you avoid overheating unused spaces, improving comfort and reducing costs.

How Does the Motor and Actuator Enable Valve Automation?

The мотор и привод are the heart of every motorised valve. Here’s how they work together:

• Привод receives an electrical signal.
• It powers the мотор, which moves the valve spindle.
• The spindle rotates or shifts to открыть или закрывать the port.
• The microswitch detects when the valve is fully open or closed, sending a confirmation to the control system or boiler.

Chart: Motorised Valve Automation Cycle

This mechanism lets you control heating and hot water with high accuracy and minimal manual work.

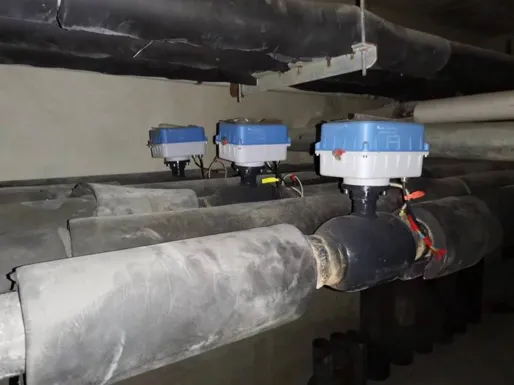

How Does the Motor and Actuator Enable Valve Automation

How Do 2 Port Motorised Valves Compare to Other Types?

2 port motorised valves are the standard for many heating and hot water systems. They simply allow or block flow through a single pipe. By contrast, 3 port valves can direct flow to one of two paths—often used in “Y” plan or S plan heating systems.

2 port motorised valves are popular due to their reliability, ease of installation, and suitability for zone valve setups. For most commercial HVAC and industrial uses, 2 port is the go-to choice.

Manual Lever, Microswitch, and Position: How Do They Affect Valve Operation?

Every motorised valve comes with design features to ensure safe, flexible operation:

• Manual lever: Lets you manually open the valve for maintenance or emergency use.
• Microswitch: Confirms when the valve is fully open or closed, preventing system errors.
• Position indicator: Shows current valve status at a glance.

Table: Valve Features and Benefits

For best practice, choose valves with all these features—especially in complex automation projects.

What Are the Most Common Faults in Motorised Valves?

Even high-quality valves can fail, especially if maintenance is neglected or installation isn’t ideal. Here are common issues:

• Stuck valve spindle: Prevents the valve from opening or closing.
• Faulty microswitch: No feedback to the boiler, so heat or hot water may not activate.
• Worn actuator or motor: The valve won’t move as required.
• Loose wiring or poor electrical connections: Unreliable performance or total failure.

Совет: Regular testing and scheduled maintenance will prevent most issues and extend your valve’s working life.

How to Troubleshoot or Replace a Faulty Motorised Valve?

If your heating or hot water is not working, follow these steps:

1. Check manual lever: Can you open the valve manually?
2. Listen for actuator/motor noise: No sound may mean a power or motor problem.
3. Test microswitch with a multimeter: Is there continuity when the valve is open?
4. Inspect wiring and connections.
5. Replace actuator or motor if these parts are faulty—most modern valves allow this without draining the system.

Key Features of High-Quality Motorised Valves

When specifying a motorised valve for your system, consider:

• Port type (2 port for most zoning, 3 port for diverter applications)
• Actuator design (mechanical vs. digital)
• Microswitch reliability for feedback and control
• Manual lever for backup control
• Compatibility with major HVAC brands like Honeywell
• Warranty and support from the manufacturer

Need more guidance? See our guide to smart valve selection for industrial and commercial buildings.

Smart Valve Technology: Digital Control for Modern Systems

Today’s умные клапаны go far beyond simple open/close operation. They offer:

• Integration with building management systems (BMS)
• Remote operation via Wi-Fi, Zigbee, or MBUS
• Data feedback on valve position, temperature, and system performance
• Predictive maintenance alerts

Discover the future of digital valve control with solutions like our MBUS smart valve и Wi-Fi smart valve for seamless automation.

FAQs About Motorised Valves

How do I know if my motorised valve is faulty?

• Signs include inconsistent heat, no hot water, a valve stuck in one position, or no noise from the actuator.

Can I manually open a motorised valve?

• Yes, most designs include a manual lever for emergencies or maintenance, allowing you to bypass the actuator.

What is the difference between a 2 port and 3 port motorised valve?

• 2 port valves isolate one pipe/zone, while 3 port valves direct flow to either heating or hot water as needed.

How important is the microswitch?

• It ensures the system only operates when the valve is fully open or closed, protecting the boiler and pump.

Which brands are most reliable for motorised valves?

• Leading manufacturers like Honeywell, Siemens, and our factory are preferred by professionals.

Summary: What to Remember About Motorised Valves

• Моторизованные клапаны are essential for energy-efficient, automated heat and hot water control.
• Use the right valve type (2 port or 3 port) for your system’s needs.
• Maintenance of actuators, microswitches, and manual levers is key to long-term reliability.
• Smart valve options offer digital control and real-time data for modern buildings.
• Choose quality products, expert support, and seamless integration for best results.

Explore more about advanced электрический привод solutions and our flow regulating valve lineup to see how you can optimize your HVAC or industrial systems.
