What Is a PVC Ball Valve?

Do you keep finding leaks in your water or chemical lines? Are you tired of rusty metal valves that fail when you need them most? These problems cost you time and money.

Think about what happens when a valve fails. Повреждение водой. Chemical spills. System shutdowns. The stress builds as you face repair costs and downtime.

А PVC ball valve is your answer. These plastic valves use a round ball with a hole to control flow. Turn the lever handle 90 degrees, and you can open or close your line fully.

“The right valve can mean the difference between smooth operations and costly disasters.” – Industry expert

What Is a PVC Ball Valve

Why Choose PVC Over Metal Valves?

Metal valves rust. They get heavy. They cost too much. But PVC ball valves offer many benefits:

• No rust or corrosion – works with chemicals
• Легкий – easy to install
• Lower cost – save up to 70%
• Долгая жизнь – lasts up to 10 times longer in harsh settings

Types of PVC Ball Valves You Need to Know

2-Way vs. 3-Way Valves

2-way valves let flow go one way or stop it. 3-way valves can direct flow in different paths. Think of a 3-way valve like a traffic cop at a fork in the road.

True Union vs. Standard Ball Valves

True union valves can be taken apart for fixes. This makes them worth the extra cost (about 20% more). Most pros (65%) pick these for big jobs.

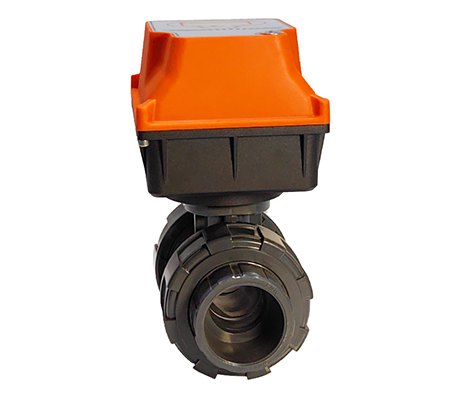

The Navarch UPVC electric ball valve brings modern control to these systems, with smart features that prevent many common valve problems.

PVC Ball Valve Materials That Matter

PVC Grades and Pressure Ratings

Not all PVC is the same. The type you pick sets how much pressure it can take.

NSF/ANSI 61 Certification

Is your water for drinking? Then you need NSF/ANSI 61 certified valves. This safety mark means the valve won’t put bad stuff in your water.

How to Connect Your PVC Ball Valve

Slip Socket End Connections

Slip sockets need PVC glue to join pipes. Steps:

1. Cut pipe straight
2. Clean ends
3. Apply primer (purple)
4. Add PVC glue
5. Push together
6. Hold for 30 seconds
7. Wait 24 hours before pressure

Threaded Connections

Threaded ends use NPT threads. You need Teflon tape or pipe dope to seal them.

Compression Fittings

Сжатие types need no glue. They use rubber rings to seal. Great for fixes you might need to undo later.

How to Install a PVC Ball Valve: Step-by-Step

Tools You Will Need

• Pipe cutter
• Primer
• PVC glue (solvent cement)
• Clean cloth
• Tape measure
• Safety glasses
• Gloves

Before You Start

Turn off your water! Open a tap to drain the line.

Step-by-Step Installation Guide

1. Cut pipe at the right spot
2. Dry-fit parts to check fit
3. Mark the depth on pipe
4. Clean all parts well
5. Apply primer to pipe and valve
6. Add glue to pipe end and valve socket
7. Push together to your mark
8. Hold for 30 seconds
9. Let dry – 2 hours for low pressure, 24 hours for full pressure
10. Тест by turning water back on slowly

Our friends at Navarch understand the importance of proper valve installation. With five production lines и 8,000 tons of annual output, they ensure every valve meets strict quality standards through multiple tests.

Troubleshooting Common PVC Ball Valve Problems

Frozen Handle Won’t Turn

Проблема: You can’t turn the handle.

Why it happens: Mineral build-up or sitting unused too long.

Fix it:

1. Apply valve lubricant
2. Gently tap with rubber mallet
3. If still stuck, you may need to replace it

Valve Leaks Around the Stem

Проблема: Water comes out around the handle.

Why it happens: O-ring wear or damage.

Fix it:

1. Turn off water
2. Remove handle
3. Replace O-ring
4. Reassemble
5. Тест

Flow Reduction Issues

Проблема: Less water flows through the valve.

Why it happens: Debris or partial closing.

Fix it:

1. Close valve
2. Remove and check for debris
3. Clean ball and seats
4. Make sure handle turns fully

Interestingly, Navarch’s technical team specializes in solving these exact problems through their advanced smart valve systems that can detect and prevent many common valve failures.

Top Industries Using PVC Ball Valves

PVC ball valves work in many places:

• Очистка воды (45% of use)
• Химические заводы (25%)
• Irrigation systems (20%)
• Swimming pools
• Food processing
• Laboratories

A case study from a chemical processing plant shows why PVC wins:

• Проблема: Metal valves lasted only 6 months in acid lines
• Решение: Schedule 80 PVC ball valves with EPDM seals
• Results: No leaks after 2 years, 70% cost savings

PVC Ball Valve Market Facts

The global market for these valves will reach $0.36 billion by 2033, growing at 5.25% each year. While metal valves still lead sales, plastic valves grow fastest due to their benefits in harsh settings.

Navarch is well-positioned in this growing market with their strategic location in a transportation hub, allowing rapid response to customer needs and customized valve solutions.

Technical Specs You Must Know

Temperature Limits

• Standard PVC: Up to 140°F (60°C)
• CPVC: Up to 200°F (93°C)

Flow Control Features

Full-port designs have bigger openings. This means:

• Less pressure drop
• Better flow
• Good for thick liquids

Reduced-port valves cost less but restrict flow more.

The Navarch stainless steel electric ball valve offers premium flow control options for applications requiring both durability and precision.

Automation Options for PVC Ball Valves

Want to control valves from far away? You need приводы клапанов:

• Электроприводы – use power to open/close
• Пневматические приводы – use air pressure
• Solenoid valves – quick on/off with electricity

These make your system smarter and can be run by computers.

Navarch specializes in intelligent valve solutions that integrate perfectly with automated systems, reducing energy consumption in heating and water networks.

Seals and Seats: The Heart of Your Valve

The seals make or break your valve. Top choices:

• PTFE (Teflon) – Works with most chemicals
• EPDM – Great for hot water, not oils
• ВИТОН – Good with acids and oils, costs more

Bad seals cause leaks. Most valve fails come from poor seals, not the PVC body.

Safety Tips for PVC Ball Valve Use

1. Never go over pressure or heat limits
2. Support pipes on both sides
3. Don’t use for gases unless made for that
4. Check chemical list before use with strong chemicals
5. Replace if you see cracks or damage

FAQs About PVC Ball Valves

Can PVC ball valves handle hot water?

Standard PVC works up to 140°F. For hotter water (up to 200°F), use ХПВХ valves instead.

Are they good for outdoor use?

Yes, but sun breaks down PVC over time. Paint them or use UV-resistant valves for outdoor jobs.

How do I fix a cracked valve body?

You don’t. Replace it. Fixing cracked PVC is not safe for pressure lines.

Can I use PVC valves for gas lines?

NO! PVC ball valves are NOT SAFE for gas. Use only valves made for gas.

How long do PVC ball valves last?

With proper use, 15-20 лет in water systems. In chemical lines, check yearly.

Why Quality Matters in Valve Selection

Poor valves fail. When they do, you pay twice – once for the cheap valve and again for the good one (plus damage costs).

The market shows less than 2% fail rate for good NSF-certified valves. But cheap ones? Up to 30% fail in the first year.

Navarch’s commitment to quality includes тщательное тестирование before shipping any valve, ensuring customers receive reliable products that meet their specific needs.

The Future of PVC Valve Technology

The valve world is changing. New things coming:

• Умные клапаны with leak detection
• IoT connections to watch your system
• Better plastics that last longer
• Low-torque designs that turn easier

With smart water valve technology, systems can now detect issues before they become problems, saving water and preventing damage.

Cost Comparison: Is PVC Worth It?

The math is clear. For most water and chemical jobs, PVC saves money over time.

Final Thoughts on Choosing the Right PVC Ball Valve

The best valve stops your leaks for good. It saves you money. It gives you peace of mind.

Think about:

• What flows through it
• How hot it gets
• How much pressure it takes
• How often you use it
• If you need to fix it later

Then pick the right PVC ball valve. Your pipes, your wallet, and your peace of mind will thank you.

With companies like Navarch focusing on energy-saving control systems and intelligent valve solutions, modern systems can achieve new levels of efficiency and reliability.

Contact a Pro for Complex Valve Needs

Some jobs need expert help. If your system is big or tricky, talk to a pro who knows valves. They can help you pick the right one and set it up right.

Remember: The right valve, put in right, saves you time and money for years to come.
